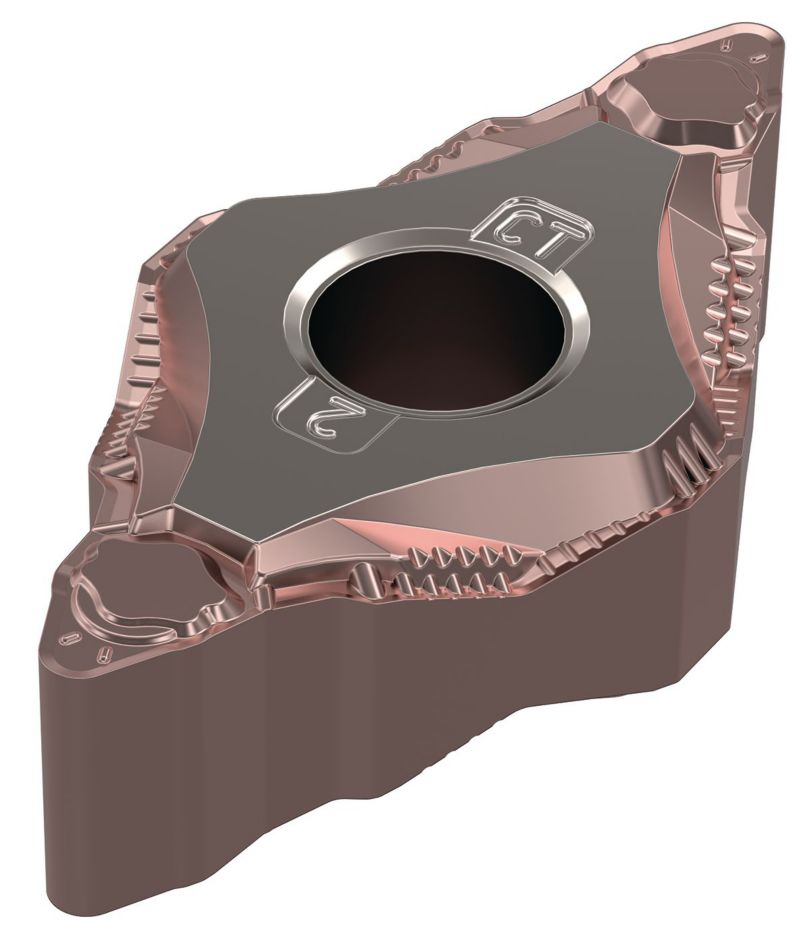

DNMG-CT

ISO/ANSI Carbide Inserts

Material Number3105217

ISO Catalog IDDNMG150404CTANSI Catalog IDDNMG431CT

DNMG-CT Turning - 3105217 - WIDIA
DNMG-CT Turning - 3105217 - WIDIA
DNMG-CT Turning - 3105217 - WIDIA
Open expanded view
DNMG-CT Turning - 3105217 - WIDIA
DNMG-CT Turning - 3105217 - WIDIA
Generic representation
List Price
/each
Discount
Your Price
/each
In StockThis item is no longer availableLonger Delivery
Material Pricing Group
Contact our sales team to discover all of your pricing options
Sold in pkg. of 0Adjusted to meet the minimum package size.
Minimum qty: 0Adjusted to meet the minimum quantity requirement.
This item is no longer available
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 3105217
    Metric
    Inch
    Material Number3105217
    ISO Catalog IDDNMG150404CT
    ANSI Catalog IDDNMG431CT
    GradeTN6010
    [D] Insert IC Size12.7 mm
    [D] Insert IC Size0.5 in
    [L10] Insert Cutting Edge Length15.504 mm
    [L10] Insert Cutting Edge Length0.6104 in
    [S] Insert Thickness4.76 mm
    [S] Insert Thickness0.1875 in
    [Rε] Corner Radius 0.4 mm
    [Rε] Corner Radius 0.016 in
    [D1] Insert Hole Size 5.16 mm
    [D1] Insert Hole Size 0.2031 in
    See all Product Variants

    Grades

    TN6010

    TN6010

    An advanced PVD TiAlN coating over a very deformation-resistant unalloyed carbide substrate. TN6010 is ideal for finishing to general machining of most workpiece materials at higher speeds. Excellent for machining most steels, stainless steels, cast irons, non-ferrous materials, and super alloys under stable conditions. It also performs well machining hardened and short chipping materials.

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    MDUN 93° - KM32TS Internal Cutting Units (M-Clamping)
    1023730
    KM32TSS25EMDUNR15
    KM32TSS25EMDUNR15
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    MDUN 93° - KM32TS Internal Cutting Units (M-Clamping)
    1023938
    KM32TSS25GMDUNR15
    KM32TSS25GMDUNR15
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    DDQN 107.5° • KM80ATC™ Cutting Units • Kenclamp™
    2220278
    KM80ATCDDQNR15KC04
    KM80ATCDDQNR15KC04
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    DDQN 107.5° • KM80ATC™ Cutting Units • Kenclamp™
    2220279
    KM80ATCDDQNL15KC04
    KM80ATCDDQNL15KC04
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    DDUN 93° • KM80ATC™ Cutting Units • Kenclamp™
    2220286
    KM80ATCDDUNR15KC04
    KM80ATCDDUNR15KC04
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    DDUN 93° • KM80ATC™ Cutting Units • Kenclamp™
    2220287
    KM80ATCDDUNL15KC04
    KM80ATCDDUNL15KC04
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    MDUN 93°
    2265353
    KM63TSS25KMDUNR15
    KM63TSS25KMDUNR15
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    MDUN 93°
    2265354
    KM63TSS25KMDUNL15
    KM63TSS25KMDUNL15
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    MDUN 93°
    2265357
    KM63TSS32LMDUNR15
    KM63TSS32LMDUNR15
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    MDUN 93°
    2265358
    KM63TSS32LMDUNL15
    KM63TSS32LMDUNL15
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
