| Número de material | 2832974 |
| ID do catálogo ISO | BSBI10006 |
| ID do catálogo ASI | BSBI10006 |
| Grade | WG |

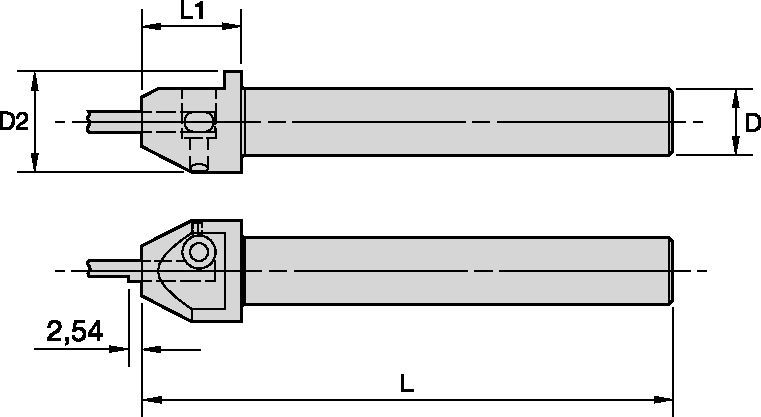

| [D] Adapter / Shank / Bore Diameter | 25.4 mm |
| [D] Adapter / Shank / Bore Diameter | 1 in |
| [D2] Body Diameter 1 Workpiece Side | 25.65 mm |
| [D2] Body Diameter 1 Workpiece Side | 1.01 in |
| [L] Overall Length | 152.4 mm |
| [L] Overall Length | 6 in |
| [L1] Gage Length | 29.21 mm |
| [L1] Gage Length | 1.15 in |
| Clamp Screw ID Drive Size | 5/64 |
