    ER • KM63XMZ

    ER • KM63XMZ

    Material Number1532048

    ISO Catalog IDKM63XMZER16120YANSI Catalog IDKM63XMZER16120Y

    ER Collet Adapter KM63XMZ Tool Holders & Adapters - 1532048 - Kennametal
    ER Collet Adapter KM63XMZ Tool Holders & Adapters - 1532048 - Kennametal
    ER Collet Adapter KM63XMZ Tool Holders & Adapters - 1532048 - Kennametal
    Open expanded view
    ER Collet Adapter KM63XMZ Tool Holders & Adapters - 1532048 - Kennametal
    ER Collet Adapter KM63XMZ Tool Holders & Adapters - 1532048 - Kennametal
    Generic representation
    List Price
    C$757.19/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Axial Adjustment - EndAxial Adjustment - End
    • Shank - Cylindrical PlainShank - Cylindrical Plain
    • Shank - KM-XMZShank - KM-XMZ
    • Shank - Cylindrical with SquareShank - Cylindrical with Square
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Collet - ER DIN 6499Collet - ER DIN 6499
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 1532048
    Metric
    Inch
    Material Number1532048
    ISO Catalog IDKM63XMZER16120Y
    ANSI Catalog IDKM63XMZER16120Y
    [CST] Catalog Collet SeriesER16
    [D11] Lock Nut Diameter32 mm
    [D11] Lock Nut Diameter1.2598 in

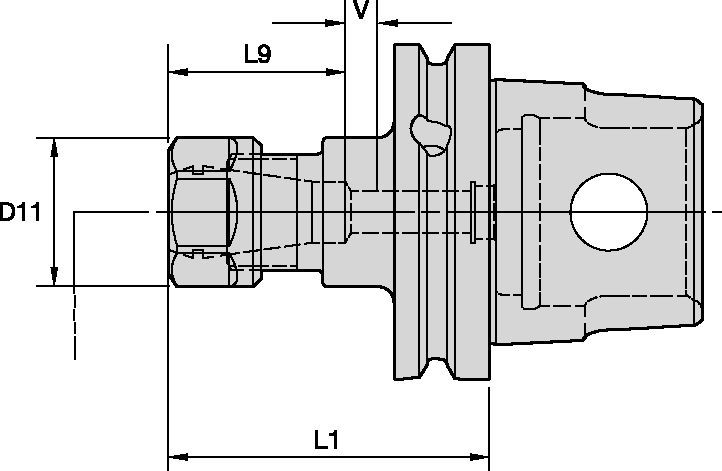

    [L1] Gage Length120 mm
    [L1] Gage Length4.7244 in
    [L9] Clamping Length 32 mm
    [L9] Clamping Hole Length 1.2598 in
    [V] Adjustment Range 48 mm
    [V] Adjustment Range 1.8892 in
    Weight Kilograms1.02
    Counter Bore Collet Torque Nm40
    Straight Collet Torque Nm56
    Stop Screw ID Drive Size4 mm & 5/32
    See all Product Variants

    Uses and application

    • Axial Adjustment - EndAxial Adjustment - End
    • Shank - Cylindrical PlainShank - Cylindrical Plain
    • Shank - KM-XMZShank - KM-XMZ
    • Shank - Cylindrical with SquareShank - Cylindrical with Square
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
    • Collet - ER DIN 6499Collet - ER DIN 6499

    Features and benefits

    • Grip (2:1 advantage).
