FBH - RFX Shank Series

ROTAFLEX™ High-Performance Boring Systems

Metric
Inch
SAP Material Number 3861144
ISO Catalog Number RFX245FBH029038
ANSI Catalog Number RFX245FBH029038
Grade WG

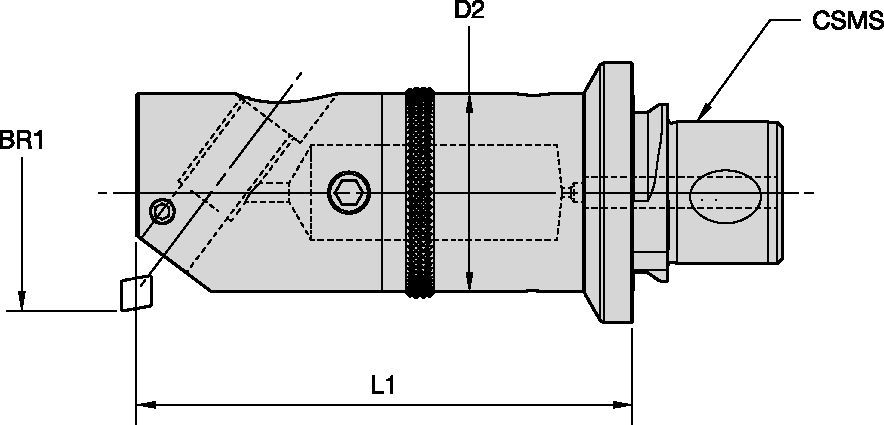

[BR1] Bore Diameter Range 29.0000-38 mm
[BR1] Bore Diameter Range 1.141 in
[D2] Body Diameter 1 Workpiece Side 24.5 mm
[D2] Body Diameter 1 Workpiece Side .9646 in
[L1] Gage Length 60 mm
[L1] Gage Length 2.362 in
[L1Assy] Assembly Length 62 mm
[L1Assy] Assembly Length 2.44 in
[CSMS] System Size Machine Side RFX245
Weight Kilograms 0.2
Weight Pounds 0.4
See all Product Variants

Uses and application

  • Reaming: Blind HoleReaming: Blind Hole
  • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling

Features and benefits

  • .0004" (0,01mm) diameter adjustment.

  • Basic body shipped without boring bars.

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for FBH - RFX Shank Series

Spare Part
    Keil/Druckstück,D=3,2,RFX-FBK-24,5 Keil/Druckstück,D=3,2,RFX-FBK-24,5
    Keil/Druckstück,D=3,2,RFX-FBK-24,5
    Spare Part
      Spare Part Kegelschraube,RFX-FBK-24,5 Spare Part Kegelschraube,RFX-FBK-24,5
      Spare Part Kegelschraube,RFX-FBK-24,5
      Spare Part
        Spare Part M10X1X4,SW3,RFX-FBK-18,5u.24, Spare Part M10X1X4,SW3,RFX-FBK-18,5u.24,
        Spare Part M10X1X4,SW3,RFX-FBK-18,5u.24,
