    GT72 • Machine Screw and Fractional • Form B Plug Chamfer • DIN Length ANSI Shank • Wrought and Cast Aluminum

    Victory™ Left-Hand Spiral-Flute HSS-E Taps • Through Holes

    Material Number5690899

    ISO Catalog IDGT725015ANSI Catalog IDGT725015

    GT72 LHSF DA Inch Tapping - 5690899 - WIDIA
    GT72 LHSF DA Inch Tapping - 5690899 - WIDIA
    GT72 LHSF DA Inch Tapping - 5690899 - WIDIA
    Open expanded view
    GT72 LHSF DA Inch Tapping - 5690899 - WIDIA
    GT72 LHSF DA Inch Tapping - 5690899 - WIDIA
    Generic representation
    List Price
    C$25.92/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • N Non-Ferrous
    • Tapping: Through HoleTapping: Through Hole
    • 3851038510
    • HSS-EHSS-E
    • Flood Coolant: TappingFlood Coolant: Tapping
    • Manufacturer’s Specs: UNFManufacturer’s Specs: UNF
    • Manufacturer’s Specs: UNCManufacturer’s Specs: UNC
    • Tapping Helix Angle: L15°Tapping Helix Angle: L15°
    • DIN Number ANSIDIN Number ANSI
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

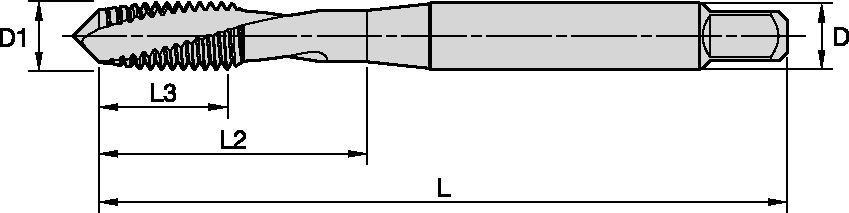

    Drawings for 5690899
    Metric
    Inch
    Material Number5690899
    ISO Catalog IDGT725015
    ANSI Catalog IDGT725015
    GradeWN44EG
    [D1-TDZ] Thread Diameter Size#10 - 24
    [L] Overall Length 70 mm
    [L] Overall Length 2.76 in
    [L3] Thread Length 12 mm
    [L3] Thread Length 0.47 in
    [L2] Useable Length 25 mm
    [L2] Useable Length 0.98 in
    [D] Adapter / Shank / Bore Diameter4.928 mm
    [D] Adapter / Shank / Bore Diameter0.194 in
    [Z] Number of Flutes2
    Tap Pitch Diameter LimitH3
    See all Product Variants

    Workpiece Materials

    • Non-Ferrous

    Uses and application

    • Tapping: Through HoleTapping: Through Hole
    • 3851038510
    • HSS-EHSS-E
    • Flood Coolant: TappingFlood Coolant: Tapping
    • Manufacturer’s Specs: UNFManufacturer’s Specs: UNF
    • Manufacturer’s Specs: UNCManufacturer’s Specs: UNC
    • Tapping Helix Angle: L15°Tapping Helix Angle: L15°
    • DIN Number ANSIDIN Number ANSI

    Grades

    WN44EG

    WN44EG

    High vanadium HSS-E substrate with a coating consists of low friction CrC/C over wear-resistant TiN base layer. Use for tapping stainless steel, high-temp alloys and steels.

    Features and benefits

    • WN44EG TiN + CrC/C for aluminum.

    Create Solution to calculate Feeds and Speeds

    After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

    I have read and accepted the Terms & Conditions of use

    CAD Drawings Models

    Can’t find the file type you’re looking for?

    Product data

    SDS

    Safety Data Sheets
    Create Solution to find the perfect compatible parts for your tool.

    Product Name
    Material Number
    ISO Catalog ID
    ANSI Catalog ID

    DA J series Collet
    DA J series Collet
    1016467
    JTC10
    JTC10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    DA K series - Tap Collets
    DA K series - Tap Collets
    1016468
    KTC10
    KTC10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    DA L series - Tap Collets
    DA L series - Tap Collets
    1016469
    LTC10
    LTC10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    TG50 Solid Tap Collet
    TG50 Solid Tap Collet
    1017015
    50TGST10
    50TGST10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Tension-Only Solid Tap Collets
    ER Tension-Only Solid Tap Collets
    1026371
    16ERTCT10
    16ERTCT10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Tension-Only Solid Tap Collets
    ER Tension-Only Solid Tap Collets
    1026373
    25ERTCT10
    25ERTCT10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Tension-Only Solid Tap Collets
    ER Tension-Only Solid Tap Collets
    1026395
    32ERTCT10
    32ERTCT10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026401
    16ERTC10
    16ERTC10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026425
    20ERTC10
    20ERTC10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
    ER Standard Tap Collets • Inch/Metric ANSI
    ER Standard Tap Collets • Inch/Metric ANSI
    1026433
    25ERTC10
    25ERTC10
    List Price
    /each
    Discount
    Your Price
    /each
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    In StockThis item is no longer availableLonger Delivery
