Shell Mill Adapters with Through Coolant
Shell Mill Adapters with Through Coolant
Shell Mill Adapters with Through Coolant
Shell Mill Adapters with Through Coolant
Select the files you wish to request
Downloads
Send to Fusion 360

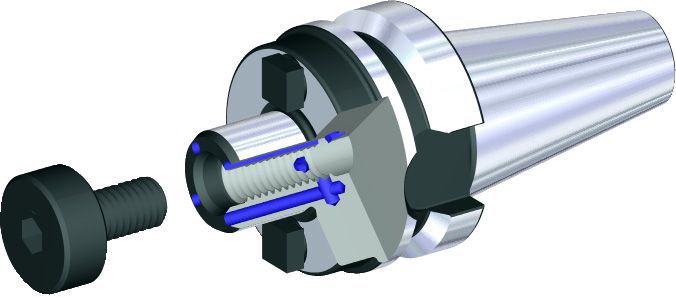

SMC Lock IN-BT Form B/AD

Shell Mill Adapters with Through Coolant

Metric
Inch
SAP Material Number 3648598
ISO Catalog Number BT30SMC050118
ANSI Catalog Number BT30SMC050118
Weight Pounds 1.02
[D2] Body Diameter 1 Workpiece Side 36.5 mm
[D2] Body Diameter 1 Workpiece Side 1.437 in
[L1] Gage Length 29.972 mm
[L1] Gage Length 1.18 in
[D1] Adapter / Shank / Bore Diameter 12.7 mm
[D1] Adapter / Shank / Bore Diameter .5 in
Cutter Retention Screw ID Drive Size 3/16
See all Product Variants

Uses and application

  • Shank - SK BT JIS B 6339Shank - SK BT JIS B 6339
  • Milling - Side and FaceMilling - Side and Face
  • Balanced-by-Design Balanced-by-Design
  • Milling - Through CoolantMilling - Through Coolant

Spare Parts for SMC Lock IN-BT Form B/AD

Spare Part
    KDK-4 SHELL MILL DRIVE KEY KDK-4 SHELL MILL DRIVE KEY
    KDK-4 SHELL MILL DRIVE KEY
    Spare Part
      KLS-5 SHELL MILL LOCK SCREW KLS-5 SHELL MILL LOCK SCREW
      KLS-5 SHELL MILL LOCK SCREW
