SurfaçageDownloaded file will be available after import in the {{cadTool}} tool library.
| Numéro de matériel | 5626418 |
| Ref. ISO Catalogue | M1600D160Z16W4S40ON04 |
| Ref. ANSI Catalogue | M1600D160Z16W4S40ON04 |

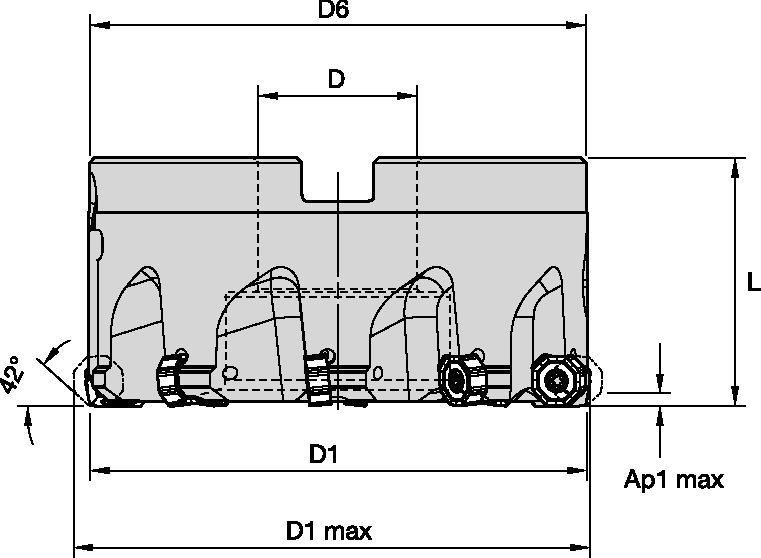

| [D1] Diamètre effectif de coupe | 160 mm |
| [D1] Diamètre effectif de coupe | 6.2992 in |
| [D1MAX] Diamètre de coupe maximal | 166.445 mm |
| [D1MAX] Diamètre de coupe maximal | 6.553 in |
| [D] Adaptateur / Queue / Diamètre d’alésage | 40 mm |
| [D] Adaptateur / Queue / Diamètre d’alésage | 1.5748 in |
| [D6] Diamètre du moyeu | 90 mm |
| [D6] Diamètre du moyeu | 3.5433 in |
| [L] Longueur totale | 63 mm |
| [L] Longueur totale | 2.4803 in |
| [AP1MAX] 1re profondeur de coupe maximale | 2.1 mm |
| [AP1MAX] 1re profondeur de coupe maximale | 0.0827 in |
| Nombre de plaquettes | 16 |
| T/Min max | 5700 |
| Alimentation en arrosage | N |
| Poids en kilogrammes | 6.4 |
SurfaçageCréez une Solution pour calculer les avances et vitesses
Après avoir créé une Solution, choisissez simplement l'icône "Avances et Vitesses" et notre système vous fournira ses recommandations. Vous pouvez les personnaliser en ajoutant votre machine et vos spécifications techniques, ou en ajustant votre demande à l'aide des curseurs.
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent (fz) programmée en % de l'engagement radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40–100% | ||||||||||||
| .S..MM | 0,17 | 0,61 | 1,23 | 0,12 | 0,44 | 0,88 | 0,09 | 0,33 | 0,66 | 0,08 | 0,29 | 0,57 | 0,07 | 0,26 | 0,52 | .S..MM |
| Travaux légers | Applications générales | Travaux lourds |
| Géométrie de plaquette | Avance par dent (fz) programmée en % de l'engagement radial (ae) | Géométrie de plaquette | ||||||||||||||
| 5% | 10% | 20% | 30% | 40-100% | ||||||||||||
| .S..MM | .007 | .023 | .046 | .005 | .016 | .033 | .004 | .012 | .024 | .003 | .011 | .021 | .003 | .010 | .019 | .S..MM |
| Groupe Matières | WK15CM | WU10PM | WU20PM | THM-F | |||||||||
| P | 1 | — | — | — | — | — | — | 330 | 290 | 270 | — | — | — |
| 2 | — | — | — | — | — | — | 275 | 250 | 200 | — | — | — | |
| 3 | — | — | — | — | — | — | 255 | 220 | 175 | — | — | — | |
| 4 | — | — | — | 245 | 200 | 170 | 225 | 190 | 150 | — | — | — | |
| 5 | — | — | — | — | — | — | 185 | 175 | 150 | — | — | — | |
| 6 | — | — | — | — | — | — | 165 | 130 | 100 | — | — | — | |
| M | 1 | — | — | — | — | — | — | 205 | 180 | 165 | — | — | — |
| 2 | — | — | — | — | — | — | 185 | 160 | 130 | — | — | — | |
| 3 | — | — | — | — | — | — | 140 | 120 | 95 | — | — | — | |
| K | 1 | 420 | 385 | 340 | 295 | 265 | 240 | 250 | 220 | 185 | 190 | 170 | 150 |
| 2 | 335 | 295 | 275 | 230 | 205 | 190 | 200 | 180 | 150 | — | — | — | |
| 3 | 280 | 250 | 230 | 195 | 175 | 160 | 180 | 150 | 120 | — | — | — | |
| N | 1 | — | — | — | 640 | 570 | 525 | 550 | 470 | 400 | 795 | 695 | 600 |
| 2 | — | — | — | 640 | 570 | 525 | 550 | 470 | 400 | 795 | 695 | 600 | |
| 3 | — | — | — | 580 | 535 | 490 | 400 | 350 | 300 | — | — | — | |
| S | 1 | — | — | — | — | — | — | 40 | 35 | 25 | — | — | — |
| 2 | — | — | — | — | — | — | 40 | 35 | 25 | — | — | — | |
| 3 | — | — | — | — | — | — | 50 | 40 | 25 | — | — | — | |
| 4 | — | — | — | — | — | — | 70 | 50 | 35 | — | — | — | |
| H | 1 | — | — | — | 160 | 130 | 90 | 110 | 80 | 70 | — | — | — |
| Groupe Matières | WK15CM | WU10PM | WU20PM | THM-F | |||||||||
| P | 1 | — | — | — | — | — | — | 1080 | 950 | 890 | — | — | — |
| 2 | — | — | — | — | — | — | 900 | 820 | 660 | — | — | — | |
| 3 | — | — | — | — | — | — | 840 | 720 | 570 | — | — | — | |
| 4 | — | — | — | 800 | 660 | 560 | 740 | 620 | 490 | — | — | — | |
| 5 | — | — | — | — | — | — | 610 | 570 | 490 | — | — | — | |
| 6 | — | — | — | — | — | — | 540 | 430 | 330 | — | — | — | |
| M | 1 | — | — | — | — | — | — | 670 | 590 | 540 | — | — | — |
| 2 | — | — | — | — | — | — | 610 | 520 | 430 | — | — | — | |
| 3 | — | — | — | — | — | — | 460 | 390 | 310 | — | — | — | |
| K | 1 | 1380 | 1260 | 1120 | 970 | 870 | 790 | 820 | 720 | 610 | 620 | 560 | 490 |
| 2 | 1100 | 970 | 900 | 750 | 670 | 620 | 660 | 590 | 490 | — | — | — | |
| 3 | 920 | 820 | 750 | 640 | 570 | 520 | 590 | 490 | 390 | — | — | — | |
| N | 1 | — | — | — | 2100 | 1870 | 1720 | 1800 | 1540 | 1310 | 2610 | 2280 | 1970 |
| 2 | — | — | — | 2100 | 1870 | 1720 | 1800 | 1540 | 1310 | 2610 | 2280 | 1970 | |
| 3 | — | — | — | 1900 | 1760 | 1610 | 1310 | 1150 | 980 | — | — | — | |
| S | 1 | — | — | — | — | — | — | 130 | 110 | 80 | — | — | — |
| 2 | — | — | — | — | — | — | 130 | 110 | 80 | — | — | — | |
| 3 | — | — | — | — | — | — | 160 | 130 | 80 | — | — | — | |
| 4 | — | — | — | — | — | — | 230 | 160 | 110 | — | — | — | |
| H | 1 | — | — | — | 520 | 430 | 300 | 360 | 260 | 230 | — | — | — |
| Travaux légers | Applications générales | Travaux lourds | ||||
| Groupe Matières | Géométrie | Nuance | Géométrie | Nuance | Géométrie | Nuance |
| P1–P2 | .S..MM | WU10PM | .S..MM | WU10PM | .S..MM | WU20PM |
| P3–P4 | .S..MM | WU10PM | .S..MM | WU20PM | .S..MM | WU20PM |
| P5–P6 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| M1–M2 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| M3 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| K1–K2 | .S..MM | WK15CM | .S..MM | WK15CM | .S..MM | WU20PM |
| K3 | .S..MM | WU20PM | .S..MM | WU10PM | .S..MM | WK15CM |
| N1–N2 | .S..MM | WU10PM | .S..MM | WU10PM | .S..MM | WU20PM |
| N3 | .S..MM | WU10PM | .S..MM | WU10PM | .S..MM | WU20PM |
| S1–S2 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| S3 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| S4 | .S..MM | WU20PM | .S..MM | WU20PM | .S..MM | WU20PM |
| H1 | .S..MM | WU10PM | .S..MM | WU20PM | .S..MM | WU20PM |
