3/4" • Shell Mills

Name: 3/4" • Shell Mills
SKU: 6009964

3/4″ • Shell Mills

Metric

Inch

SAP 材料编号	6009964
ISO 目录编号	M200D400Z06S125RN64
ANSI 目录编号	M200D400Z06S125RN64

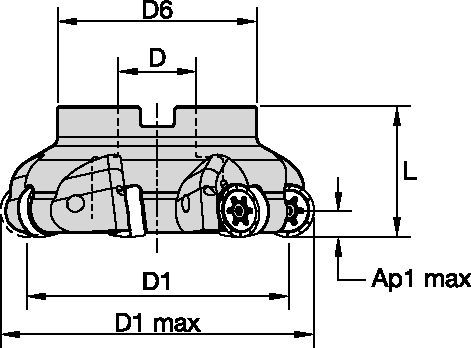

[D1MAX] 最大切削直径	101.6000 mm
[D1MAX] 最大切削直径	4.000 in
[D1] 有效的切削直径	82.5000 mm
[D1] 有效的切削直径	3.250 in
[D]适配接头/刀柄/镗孔直径	31.76 mm
[D]适配接头/刀柄/镗孔直径	1.25 in
[D6] 保护区孔直径	73.0200 mm
[D6] 保护区孔直径	2.875 in
[L] 总长	50.8000 mm
[L] 总长	2.000 in
[AP1MAX] 第一个最大切深	9.5000 mm
[AP1MAX] 第一个最大切深	.3700 in
刀片数量	6
最大坡铣角度	0.700
最大 RPM	11600
冷却液供应	Y
重量（磅）	3.41

See all Product Variants

Uses and application

铣削 — 侧铣和端面铣
3D仿形加工
侧铣/方肩铣削：球形刀尖
槽铣：方头立铣
端面铣削
刀座
铣削 — 贯通式冷却
36310

Workpiece Materials

P 钢

M 不锈钢

K 铸铁

S 高温合金

H 淬火材料

Features and benefits

Double-sided, 12 cutting edges.

Anti-rotation feature for better stability and higher feed rates.

Excellent for heavy roughing and semi-finishing of all materials.

Suitable for high-feed face milling operations.

Insert Selection Guide • M200™ Series • Large IC Expansion

	Obróbka lekka		Obróbka średnia		Obróbka ciężka
Grupa materiałowa	Geometria	Gatunek	Geometria	Gatunek	Geometria	Gatunek
P1–P2	.E..ML	WP25PM	.S..MM	WP40PM	.S..MM	WP40PM
P3–P4	.E..ML	WP25PM	.S..MM	WP40PM	.S..MM	WP40PM
P5–P6	.E..ML	WP25PM	.S..MM	WP35CM	.S..MM	WP35CM
M1–M2	.E..ML	WP25PM	.S..MM	WU35PM	.S..MM	WU35PM
M3	.E..ML	WP25PM	.S..MM	WU35PM	.S..MM	WU35PM
K1–K2	–	–	.S..MM	WK15CM	–	–
K3	–	–	.S..MM	WK15CM	–	–
N1–N2	–	–	–	–	–	–
N3	–	–	–	–	–	–
S1–S2	.E..ML	WP25PM	.S..MM	WU35PM	.S..MM	WU35PM
S3	.E..ML	WP25PM	.S..MM	WU35PM	.S..MM	WU35PM
S4	.E..ML	WP25PM	.S..MM	WU35PM	.S..MM	WU35PM
H1	–	–	.S..MM	WP25PM	–	–

	Zalecany posuw na ostrze (fz) zależny od % szerokości frezowania (ae)
Geometria płytki	10%			20%			30%			40%			50–100%			Geometria płytki
.E..ML	.003	.009	.016	.003	.007	.012	.002	.006	.010	.002	.006	.010	.002	.005	.009	.E..ML
.S..MM	.007	.015	.027	.005	.011	.020	.005	.010	.017	.004	.009	.016	.004	.009	.016	.S..MM

	Zalecany posuw na ostrze (fz) zależny od % szerokości frezowania (ae)
Geometria płytki	10%			20%			30%			40%			50–100%			Geometria płytki
.E..ML	.004	.011	.020	.003	.008	.015	.003	.007	.013	.003	.007	.012	.003	.007	.012	.E..ML
.S..MM	.009	.019	.034	.006	.014	.025	.006	.012	.021	.005	.011	.020	.005	.011	.020	.S..MM

	Zalecany posuw na ostrze (fz) zależny od % szerokości frezowania (ae)
Geometria płytki	10%			20%			30%			40%			50–100%			Geometria płytki
.E..ML	.008	.021	.037	.006	.016	.027	.005	.014	.023	.005	.013	.022	.005	.012	.021	.E..ML
.S..MM	.016	.035	.065	.012	.025	.046	.010	.022	.040	.010	.020	.037	.009	.020	.036	.S..MM

Obróbka lekka

Obróbka średnia

Obróbka ciężka

	Zalecany posuw na ostrze (fz) zależny od % szerokości frezowania (ae)
Geometria płytki	10%			20%			30%			40%			50–100%			Geometria płytki
.E..ML	.006	.015	.027	.004	.011	.020	.004	.010	.017	.004	.009	.016	.003	.009	.016	.E..ML
.S..MM	.012	.025	.046	.009	.018	.033	.007	.016	.029	.007	.015	.027	.007	.015	.026	.S..MM

Recommended Starting Speeds [SFM]

Grupa materiałowa		WK15CM			WP25PM			WU35PM			WP35CM			WP40PM
P	1	–	–	–	1295	1120	1060	1025	905	845	1790	1555	1460	1165	1025	965
	2	–	–	–	1080	940	785	865	750	630	1105	1000	905	985	845	710
	3	–	–	–	1000	845	690	785	670	550	1000	905	805	905	770	630
	4	–	–	–	890	725	590	710	590	475	750	690	630	805	670	535
	5	–	–	–	725	670	590	590	535	475	1025	905	830	670	610	535
	6	–	–	–	650	490	395	510	395	310	630	535	430	590	450	355
M	1	–	–	–	805	710	650	670	590	535	805	725	610	770	670	610
	2	–	–	–	725	630	510	610	510	430	725	630	550	690	590	490
	3	–	–	–	550	475	370	450	395	310	570	510	450	510	450	355
K	1	1655	1520	1340	905	805	725	–	–	–	1165	1045	940	–	–	–
	2	1320	1165	1080	710	630	590	–	–	–	925	830	750	–	–	–
	3	1105	985	905	590	535	475	–	–	–	770	690	630	–	–	–
N	1	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	–	–	–	155	140	95	140	120	95	–	–	–	155	140	120
	2	–	–	–	155	140	95	140	120	95	–	–	–	155	140	120
	3	–	–	–	200	155	95	180	140	95	–	–	–	200	155	120
	4	–	–	–	275	200	140	235	180	120	260	200	130	260	200	140
H	1	–	–	–	475	355	275	–	–	–	–	–	–	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–

备件 for 3/4" • Shell Mills

TAPERED HEAD SCREW TORX M5X0.8 1

SCREW 5/8-18 X 1.25' LONG

5/8-18 LHCS W/COOL GROOVES X 1.25 LON

T HANDLE TORX WRENCH
