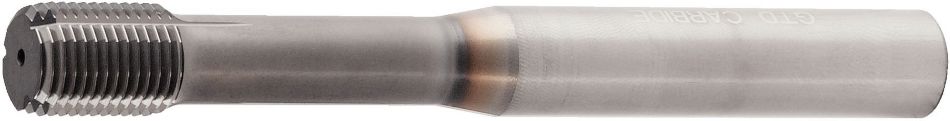

      Victory™ 整体硬质合金成型丝锥 • 盲孔
      Victory™ 整体硬质合金成型丝锥 • 盲孔
      Victory™ 整体硬质合金成型丝锥 • 盲孔
      Victory™ 整体硬质合金成型丝锥 • 盲孔

      GX49 • 公制 • E 型底部进刀锥形 •贯通冷却型,M6规格或更大规格

      Victory™ 整体硬质合金成型丝锥 • 盲孔

      Metric
      Inch
      SAP Material Number 3527629
      ISO Catalog Number 12909
      ANSI Catalog Number 12909
      Grade GN1515
      [D1-TDZ] Thread Diameter Size M8 X 1,25
      [L] Overall Length 80.0000
      [L] Overall Length 3.149
      [L3] Thread Length 10.0000
      [L3] Thread Length .3937
      [L2] Useable Length 32.0000
      [L2] Useable Length 1.259
      [D] Adapter / Shank / Bore Diameter 8.0
      [D] Adapter / Shank / Bore Diameter .315
      [Z] Number of Flutes 4
      Thread Tolerance Class ISO 6HX-I
      See all Product Variants

      Uses and application

      • 攻丝: 盲孔攻丝: 盲孔
      • HMHM
      • 倒角类型E(1.5-2)倒角类型E(1.5-2)
      • 贯通式冷却: 轴向: 攻丝贯通式冷却: 轴向: 攻丝
      • 公差等级: 6HX公差等级: 6HX
      • 制造商规格: M制造商规格: M
      • 制造商规格: MF制造商规格: MF

      Workpiece Materials

      N Non-Ferrous

      Grades

      • GN1515

        Coated carbide, PVD two-layer coating over fine-grain carbide. Coating consists of low-friction CrC/C over
        wear-resistant TiN. CrC/C resists galling of non-ferrous materials to the tap. Provides superior performance
        for tapping cast aluminum and other non-ferrous materials.

        N Non-Ferrous
