      P-Clamping
      P-Clamping
      P-Clamping
      P-Clamping

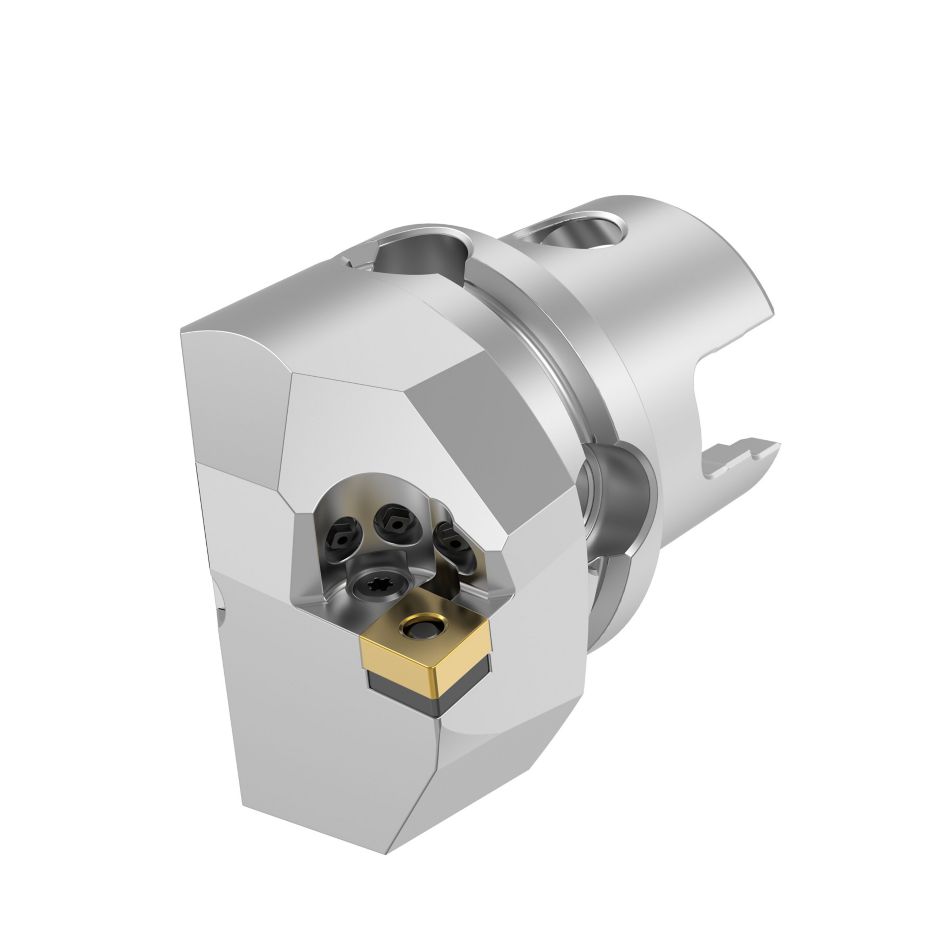

      PCLN 95° • HPC

      P-Clamping

      Metric
      Inch
      SAP Material Number 5697237
      ISO Catalog Number KM63TSPCLNR16HPC
      ANSI Catalog Number KM63TSPCLNR16HPC
      [L1] Tool Length 60.0000
      [L1] Tool Length 2.362
      [F] F Dimension 43.0000
      [F] F Dimension 1.693
      [DM] Minimum Bore Diameter 80.0000
      [DM] Minimum Bore Diameter 3.150
      Gage Insert CN..160612/CN..543
      Weight Kilograms 1.31
      Weight Pounds 2.88
      See all Product Variants

      Uses and application

      • 刀柄 —  KM-TS  ISO 26622刀柄 — KM-TS ISO 26622
      • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
      • Multi Coolant TurningMulti Coolant Turning
      • Coolant — Through Coolant  100 bar (1500 psi)  MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
      • 冷却方式- 贯通式冷却  100 bar (1500 psi)  最大值冷却方式- 贯通式冷却 100 bar (1500 psi) 最大值

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys
      H Hardened Materials

      备件 for PCLN 95° • HPC

      Spare Part
        Spare Part 515.022
        Spare Part 515.022
        Spare Part
          CLAMPING SCREW M8
          CLAMPING SCREW M8
          Spare Part
            TOGGLE LEVER
            TOGGLE LEVER
            Spare Part
              SHIM PIN TOGGLE LEVER
              SHIM PIN TOGGLE LEVER
              Spare Part
                SHIM
                SHIM
                Spare Part
                  WRENCH 15IP
                  WRENCH 15IP
                  Spare Part
                    QPM COOLANT PLUG PMP08360
                    QPM COOLANT PLUG PMP08360
                    Spare Part
                      WRENCH FRO COOLANT NOZZLES
                      WRENCH FRO COOLANT NOZZLES
                      Spare Part
                        QPM HPC NOZZLE NZLM4060140
                        QPM HPC NOZZLE NZLM4060140
