      切削装置 • S 型夹持
      切削装置 • S 型夹持
      切削装置 • S 型夹持
      切削装置 • S 型夹持
      下载CAD图纸
      SDS

      SCLC 95°

      切削装置 • S 型夹持

      Metric
      Inch
      SAP 材料编号 6330430
      ISO 目录编号 PSC50SCLCR09
      ANSI 目录编号 PSC50SCLCR09

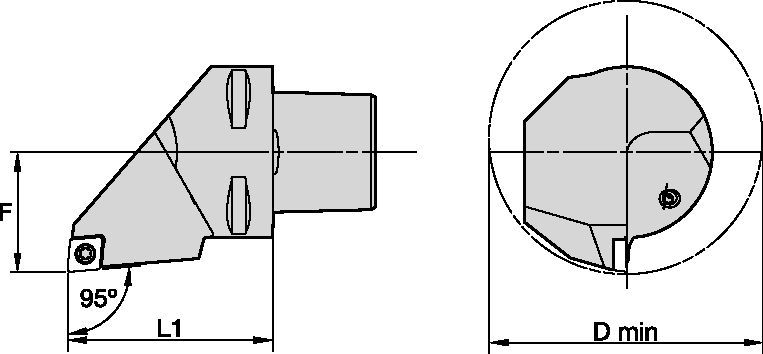

      [L1] 刀具长度 60.0000 mm
      [L1] 刀具长度 2.362 in
      [F] F 尺寸 35.0000 mm
      [F] F 尺寸 1.378 in
      [DM] 最小镗孔直径 80.0000 mm
      [DM] 最小镗孔直径 3.149 in
      Gage 刀片 CC..09T308/CC..3252
      重量（千克） 0.84
      See all Product Variants

      Uses and application

      • Shank - PSCShank - PSC
      • 制造商规格： ISO 26623制造商规格： ISO 26623
      • 冷却方式 — 贯通式冷却冷却方式 — 贯通式冷却

      Workpiece Materials

      P 钢
      M 不锈钢
      K 铸铁
      N 非铁材质
      S 高温合金
      H 淬火材料

      备件 for SCLC 95°

      Spare Part
        PSC S CLAMP 3S PARTS KIT PSC S CLAMP 3S PARTS KIT
        PSC S CLAMP 3S PARTS KIT
