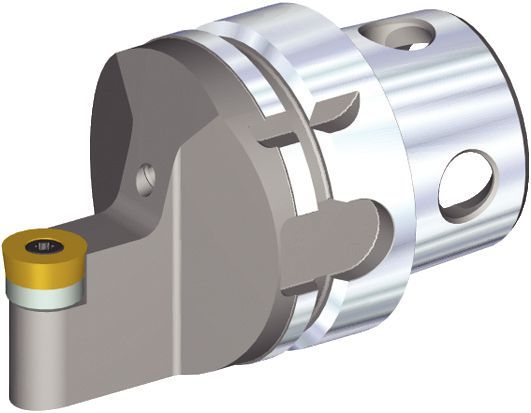

S 型夹持装置
S 型夹持装置
S 型夹持装置
S 型夹持装置
Select the files you wish to request
Downloads

SRDC 0°

S 型夹持装置

Metric
Inch
SAP 材料编号 5552441
ISO 目录编号 KM4X63SRDCN16
ANSI 目录编号 KM4X63SRDCN16
[F] F 尺寸 8 mm
[F] F 尺寸 .315 in
[CD] 切深 33 mm
[CD] 切深 1.299 in
Gage 刀片 RC..1605M
重量（磅） 2.23
重量（千克） 1.01
[L1] 刀具长度 70 mm
[L1] 刀具长度 2.756 in
See all Product Variants

Uses and application

  • Shank: KM4X™Shank: KM4X™
  • Coolant — Through Coolant 100 bar (1500 psi) MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
  • 冷却方式－ 贯通式冷却 100 bar (1500 psi) 最大值冷却方式－ 贯通式冷却 100 bar (1500 psi) 最大值

Workpiece Materials

P 钢
M 不锈钢
K 铸铁
N 非铁材质
S 高温合金

备件 for SRDC 0°

Spare Part
    KM4X63 COOLANT ASSEMBLY UNIT KM4X63 COOLANT ASSEMBLY UNIT
    KM4X63 COOLANT ASSEMBLY UNIT
    Spare Part
      COOLANT TUBE WRENCH HSK 50 COOLANT TUBE WRENCH HSK 50
      COOLANT TUBE WRENCH HSK 50
      Spare Part
        SHIM RETAINING SCREW SHIM RETAINING SCREW
        SHIM RETAINING SCREW
        Spare Part
          HARDWARE HARDWARE
          HARDWARE
          Spare Part
            TAPERED HEAD SCREW TORX M5X0.8 1 TAPERED HEAD SCREW TORX M5X0.8 1
            TAPERED HEAD SCREW TORX M5X0.8 1
