| Objednací číslo | 7242667 |
| ISO katalogové ID | ONPX060512ANSNMH |
| ANSI katalogové ID | ONPX060512ANSNMH |
| Grade | WS40PM |
| Cutting Edges per Insert | 16 |

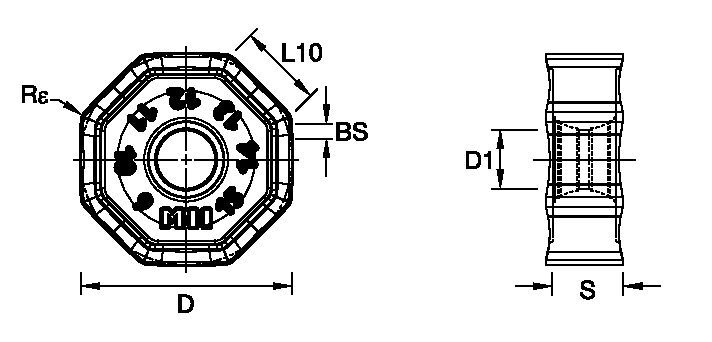

| [D] Insert IC Size | 16.88 mm |
| [D] Insert IC Size | 0.6646 in |
| [L10] Insert Cutting Edge Length | 6.874 mm |
| [L10] Insert Cutting Edge Length | 0.2706 in |
| [S] Insert Thickness | 5.473 mm |
| [S] Insert Thickness | 0.2155 in |
| [BS] Corner Facet Length | 0.913 mm |
| [BS] Corner Facet Length | 0.0359 in |
| [Rε] Corner Radius | 1.2 mm |
| [Rε] Corner Radius | 0.047 in |
