      P-Clamping
      P-Clamping
      P-Clamping
      P-Clamping

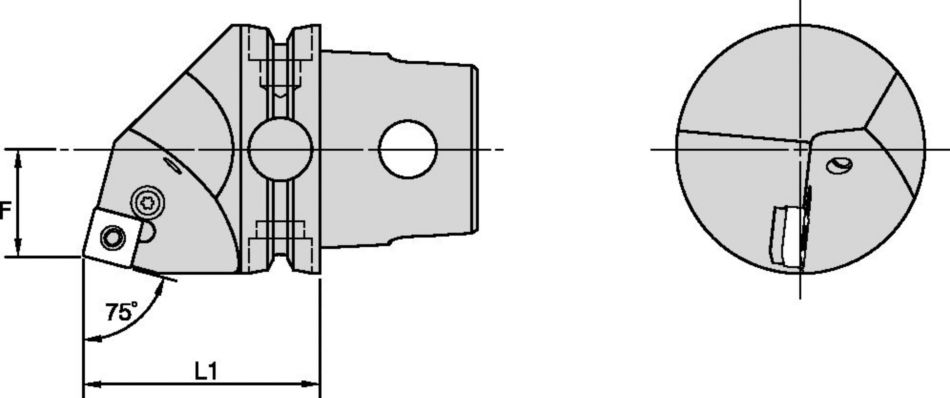

      Download CAD Drawings

      PSBN 75°

      P-Clamping

      Metric
      Inch
      SAP Material Number 2407997
      ISO Catalog Number KM63TSPSBNL15
      ANSI Catalog Number KM63TSPSBNL15
      [L1] Tool Length 60.0000
      [L1] Tool Length 2.362
      [F] F Dimension 27.0000
      [F] F Dimension 1.063
      Gage Insert SN..150612/SN..543
      Weight Kilograms 1.09
      Weight Pounds 2.41
      See all Product Variants

      Uses and application

      • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
      • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
      • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum
      • Coolant - Through Coolant 100 bar (1500 psi) MaximumCoolant - Through Coolant 100 bar (1500 psi) Maximum

      Workpiece Materials

      P Steel
      M Stainless Steel
      K Cast Iron
      N Non-Ferrous
      S High-Temp Alloys

      Spare Parts for PSBN 75°

      Spare Part
        SHIM
        SHIM
        Spare Part
          CLAMPING SCREW M8
          CLAMPING SCREW M8
          Spare Part
            SHIM PIN TOGGLE LEVER
            SHIM PIN TOGGLE LEVER
            Spare Part
              TOGGLE LEVER
              TOGGLE LEVER
              Spare Part
                WRENCH K15IP
                WRENCH K15IP
                Spare Part
                  Spare Part 515.022
                  Spare Part 515.022
