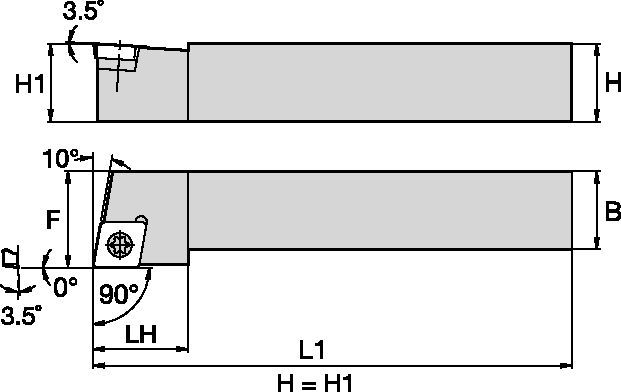

flayout Image

Download CAD Drawing

No Reviews

Write the first review

S-Style Screw Clamp Toolholders for Positive Inserts

Product specifications

Product #	5094166
ISO Catalog Number	SCGPR083V
ANSI Catalog Number	SCGPR083V
Grade	WG
[H] Shank Height Inch	.5000
[B] Shank Width Inch	.5000
[F] F Dimension Inch	.6250
[L1] Tool Length Inch	3.500
[L2] Head Length Inch	.6200
Catalog Gage Insert 1	CP..32
Insert Screw ID Drive Size	T9

Need help? Contact our customer service team.

SCGP 0°

Filter By:

Product #	ISO Catalog Number	ANSI Catalog Number	Grade	[H] Shank Height Inch	[B] Shank Width Inch	[F] F Dimension Inch	[L1] Tool Length Inch	[L2] Head Length Inch	Catalog Gage Insert 1	Insert Screw ID Drive Size
5094166	SCGPR083V	SCGPR083V	WG	.5000	.5000	.6250	3.500	.6200	CP..32	T9

Product Usage

Uses and application
Grades

Uses and application

Turning
Facing

Grades

WG

Spare Parts for SCGP 0°
