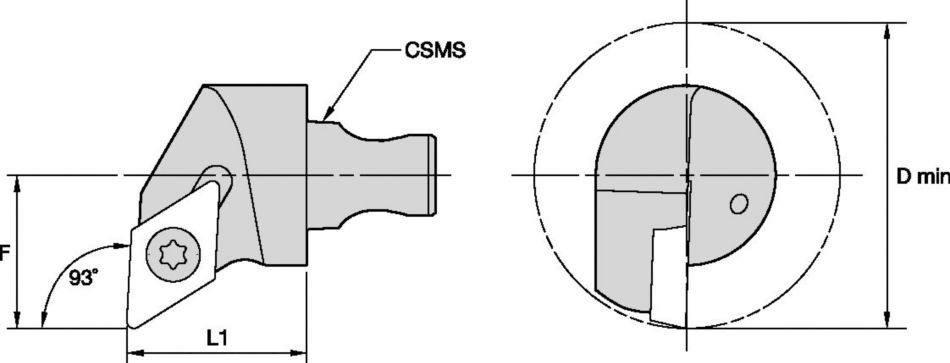

flayout Image

Download CAD Drawing

No Reviews

Write the first review

KM Micro™ Cutting Units

Screw-On

Product specifications

Product #	3016748
ISO Catalog Number	KM2016SDUPL1120
ANSI Catalog Number	KM2016SDUPL1120
[CSMS]System Size Machine Side	KM2016
[DMIN]Min BoreDia_Ax GrvDia mm	32
[F] F Dimension Metric	17
[L1] Tool Length Metric	20
Catalog Gage Insert 1	DP..11

Need help? Contact our customer service team.

SDUP 93°

Filter By:

Product #	ISO Catalog Number	ANSI Catalog Number	Grade	[CSMS]System Size Machine Side	[DMIN]Min BoreDia_Ax GrvDia mm	[F] F Dimension Metric	[L1] Tool Length Metric	Catalog Gage Insert 1
3016747	KM2016SDUPR1120	KM2016SDUPR1120		KM2016	32	17	20	DP..11
3016748	KM2016SDUPL1120	KM2016SDUPL1120		KM2016	32	17	20	DP..11

Spare Parts for SDUP 93° • KM Micro™ Cutting Units ID Application
