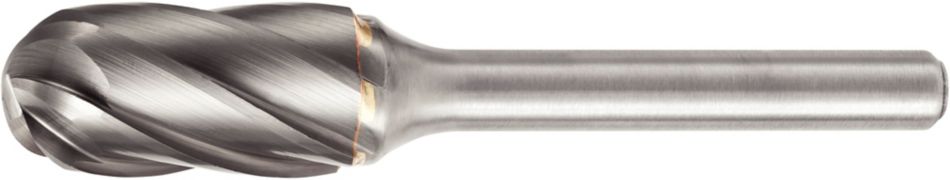

| Objednací číslo | 2735546 |
| ISO katalogové ID | M41297 |
| ANSI katalogové ID | M41297 |
| Identification Number | SC-3L6 |
| Adapter Style Machine Side | Straight-Cylindrical |
| Shank Style | C |

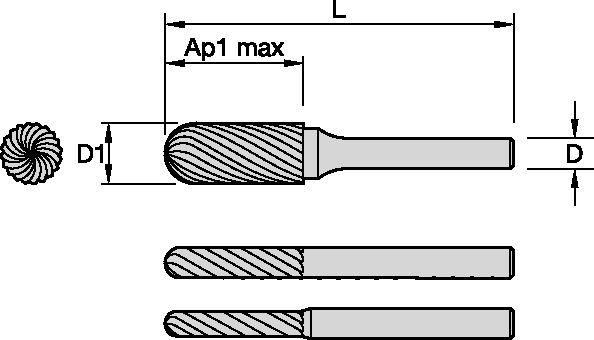

| [D1] Effective Cutting Diameter | 9.525 mm |
| [D1] Effective Cutting Diameter | 0.375 in |
| [D] Adapter / Shank / Bore Diameter | 6.35 mm |
| [D] Adapter / Shank / Bore Diameter | 0.25 in |
| [AP1MAX] 1st Maximum Cutting Depth | 12.7 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 0.75 in |
| [L] Overall Length | 171.45 mm |
| [L] Overall Length | 6.75 in |
