| Objednací číslo | 3051758 |
| ISO katalogové ID | M41512 |
| ASI katalogové ID | M41512 |
| Identification Number | SN-51 |
| Adapter Style Machine Side | Straight-Cylindrical |
| Shank Style | B |

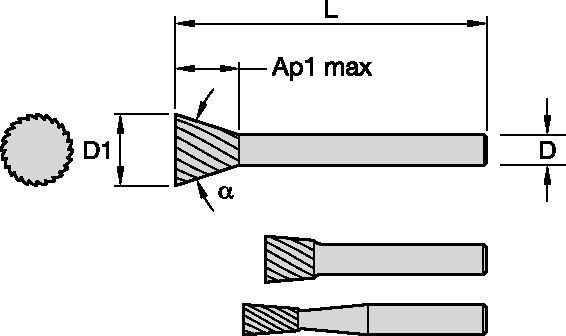

| [KRA] ANSI Approach Angle | 10 |
| [D1] Effective Cutting Diameter | 6.35 mm |
| [D1] Effective Cutting Diameter | 0.25 in |
| [D] Adapter / Shank / Bore Diameter | 3.175 mm |
| [D] Adapter / Shank / Bore Diameter | 0.125 in |
| [AP1MAX] 1st Maximum Cutting Depth | 6.35 mm |
| [AP1MAX] 1st Maximum Cutting Depth | 0.25 in |
| [L] Overall Length | 38.1 mm |
| [L] Overall Length | 1.5 in |
