    S-Clamping • TopThread™ and TopGroove™
    S-Clamping • TopThread™ and TopGroove™
    S-Clamping • TopThread™ and TopGroove™
    S-Clamping • TopThread™ and TopGroove™
    Download CAD Drawings

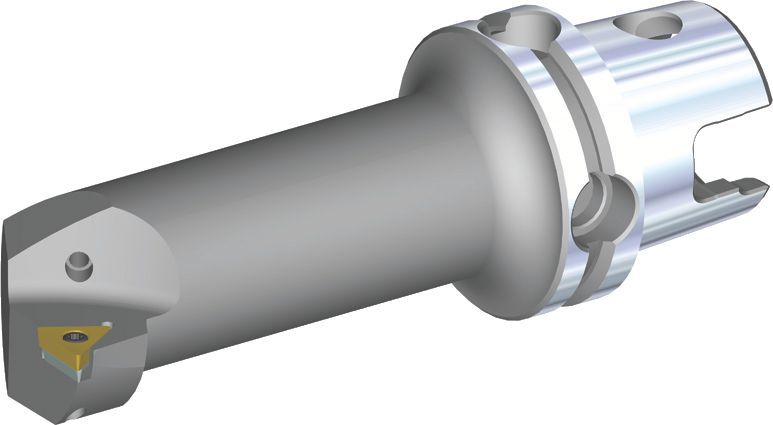

    STFC 90° • KM63TS™

    S-Clamping • TopThread™ and TopGroove™

    Metric
    Inch
    SAP Material Number 2414901
    ISO Catalog Number KM63TSS40LSTFCR16
    ANSI Catalog Number KM63TSS40LSTFCR16
    [D2] Body Diameter 1 Workpiece Side 40.0000
    [D2] Body Diameter 1 Workpiece Side 1.574
    [DM] Minimum Bore Diameter 50.0000
    [DM] Minimum Bore Diameter 1.968
    [F] F Dimension 27.0000
    [F] F Dimension 1.063
    [L4] Maximum Boring Depth 117.1400
    [L4] Maximum Boring Depth 4.612
    [L1] Tool Length 140.0000
    [L1] Tool Length 5.511
    Gage Insert TC..16T308/TC..3252
    Weight Kilograms 1.71
    Weight Pounds 3.77
    See all Product Variants

    Workpiece Materials

    P
    M
    K
    N
    S
    H

    Spare Parts for STFC 90° • KM63TS™

    Spare Part
      INSERT SCR M3.5-0.6 x 12 T15
      INSERT SCR M3.5-0.6 x 12 T15
      Spare Part
        CARBIDE SHIM
        CARBIDE SHIM
        Spare Part
          SHIM SCREW M5X0.5/M3.5X0.6 SRS-3
          SHIM SCREW M5X0.5/M3.5X0.6 SRS-3
