| Product # | 3861180 |
| ISO Catalog Number | RFX245TCHS030039 |
| ANSI Catalog Number | RFX245TCHS030039 |
| Grade | WG |

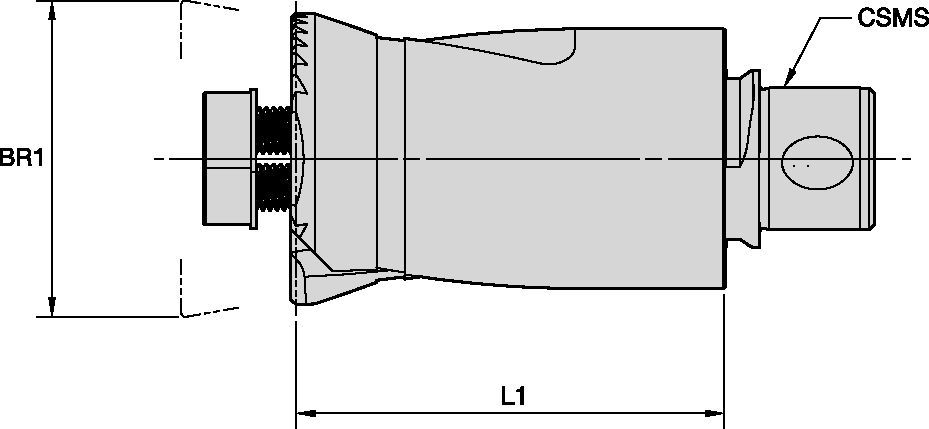

| [BR1] Bore Dia. Range Metric | 30,00 |
| [BR1] Bore Dia. Range Inch | 1.181 |

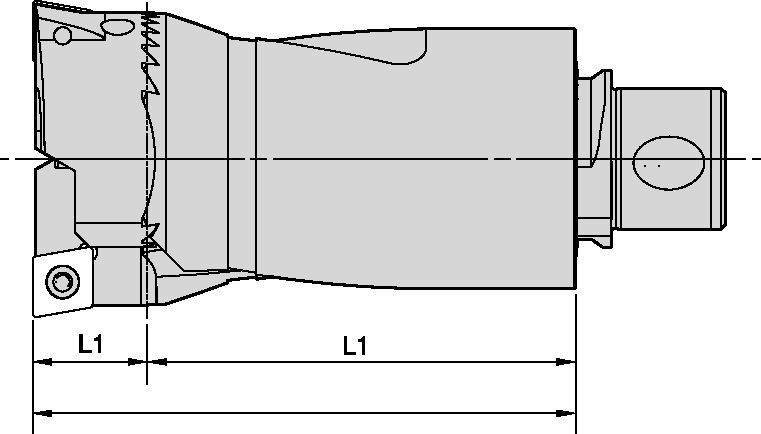

| [L1]Gage Length 1 Metric | 37,65 |
| [L1]Gage Length 1 Inch | 1.482 |
| [CSMS]System Size Machine Side | RFX245 |
| Weight Kilograms | .20 |
| Weight Pounds | .40 |
| Product # | ISO Catalog Number | ANSI Catalog Number | Grade | [BR1] Bore Dia. Range Metric | [BR1] Bore Dia. Range Inch | [L1]Gage Length 1 Metric | [L1]Gage Length 1 Inch | [CSMS]System Size Machine Side | Weight Kilograms | Weight Pounds |
|---|---|---|---|---|---|---|---|---|---|---|
| 3861180 | RFX245TCHS030039 | RFX245TCHS030039 | WG | 30,00 | 1.181 | 37,65 | 1.482 | RFX245 | .20 | .40 |
| 3861181 | RFX320TCHS039050 | RFX320TCHS039050 | WG | 39,00 | 1.535 | 48,70 | 1.917 | RFX320 | .50 | 1.10 |
| 3861182 | RFX420TCHS050067 | RFX420TCHS050067 | WG | 50,00 | 1.968 | 68,20 | 2.685 | RFX420 | 1.00 | 2.20 |
| 3861183 | RFX550TCHS067088 | RFX550TCHS067088 | WG | 67,00 | 2.637 | 90,70 | 3.571 | RFX550 | 2.00 | 4.40 |
| 3861184 | RFX720TCHS088115 | RFX720TCHS088115 | WG | 88,00 | 3.464 | 113,7 | 4.476 | RFX720 | 4.00 | 8.80 |
Reiben: Durchgangsbohrung
Reiben: Sacklochbohrung
Reiben: Durchgangsbohrung mit Querbohrung
Reiben: Sacklochbohrung mit Querbohrungen
Kühlmittel – Innere Kühlmittelzuführung
