Top Cut 4 • V34 Center Inserts • Short chipping Materials
First choice for machining short chipping materials
Material Number5542002
ISO Catalog IDTCF210608HCV34ANSI Catalog IDTCF210608HCV34
- P Steel
- K Cast Iron
Sending to {{cadTool}} in progress...
Downloaded file will be available after import in the {{cadTool}} tool library.
Material Number | 5542002 |
ISO Catalog ID | TCF210608HCV34 |
ANSI Catalog ID | TCF210608HCV34 |
Grade | WU25CH |

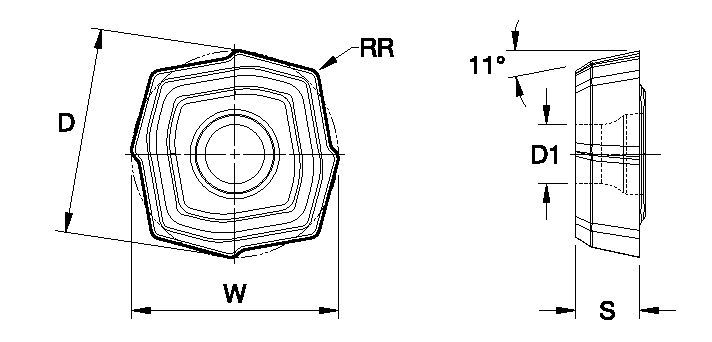

[D] Insert IC Size | 21.678 mm |
[D] Insert IC Size | 0.853 in |
[D1] Insert Hole Size | 7.5 mm |
[D1] Insert Hole Size | 0.295 in |
[W] Cutting Width | 17.7 mm |
[W] Cutting Width | 0.697 in |
[S] Insert Thickness | 6.5 mm |
[S] Insert Thickness | 0.256 in |
[RR] Corner Radius | 0.8 mm |
[RR] Corner Radius | 0.031 in |
Insert Size | H |
Workpiece Materials
- Steel
- Cast Iron
Grades
WU25CH
Composition: Advanced CVD TiCN-Al2O3 coating together with a newly engineered, tough carbide substrate. Ensures adequate deformation resistance and excellent edge strength and offers very good wear resistance over a wide range of
machining conditions.
Application: high-productivity grade with high speeds and feeds. First choice
for high productivity with excellent reliability in steels, stainless steels, and cast irons.
Features and benefits
- PSTS (Pressed and Sintered To Size) Inserts.
- Strong cutting edge.
- First choose to machine steel, cast iron and short chips materials.
- Suitable for severe cutting conditions.
- Periphery insert with Wiper land.
