      Victory™ • GT92 • 3–4 Pitches Chamfer • ANSI • Spiral Flute
      Victory™ • GT92 • 3–4 Pitches Chamfer • ANSI • Spiral Flute
      Victory™ • GT92 • 3–4 Pitches Chamfer • ANSI • Spiral Flute
      Victory™ • GT92 • 3–4 Pitches Chamfer • ANSI • Spiral Flute
      Select the files you wish to request
      Download CAD Drawings SDS
      Send to Fusion 360

      GT92 • Machine Screw and Fractional • 3-4 Pitches Chamfer • Nickel- and Cobalt-Based Alloys

      Victory™ • GT92 • 3–4 Pitches Chamfer • ANSI • Spiral Flute

      Metric
      Inch
      Número de material SAP 5705275
      Número de catálogo ISO GT925096
      Número de catálogo ANSI GT925096
      Calidad WU32MG

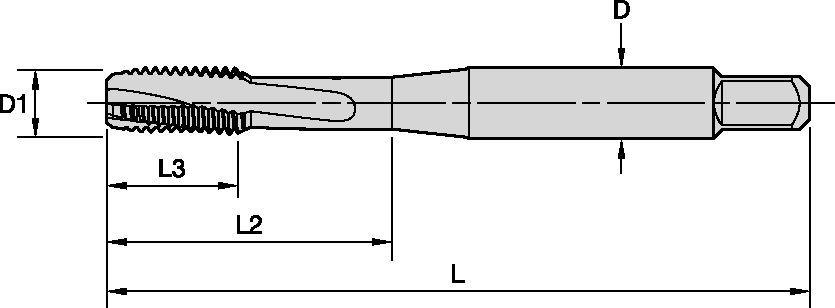

      Tamaño de diámetro de rosca [D1-TDZ] 1/4 - 20
      Longitud total [L] 63.4000 mm
      Longitud total [L] 2.500 in
      Longitud de rosca [L3] 11.1000 mm
      Longitud de rosca [L3] .4400 in
      Longitud utilizable [L2] 25.5000 mm
      Longitud utilizable [L2] 1.000 in
      Adaptador/Mango/Diá int [D] 6.477 mm
      Adaptador/Mango/Diá int [D] .255 in
      Número de canales [Z] 3
      Límite de diámetro de paso de macho de roscar H3
      See all Product Variants

      Uses and application

      • Roscado: Agujero ciegoRoscado: Agujero ciego
      • HSS-E-PMHSS-E-PM
      • Forma de bisel: 3–4Forma de bisel: 3–4
      • Ángulo helicoidal de roscado: 10°Ángulo helicoidal de roscado: 10°
      • Refrigerante para caudal: RoscadoRefrigerante para caudal: Roscado
      • Especificaciones del fabricante: UNFEspecificaciones del fabricante: UNF
      • Especificaciones del fabricante: UNCEspecificaciones del fabricante: UNC
      • Especificaciones del fabricante: ANSIEspecificaciones del fabricante: ANSI

      Workpiece Materials

      S Aleaciones de alta temperatura

      Features and benefits

      • WS39MG oxide/nitride for nickel- and cobalt-based alloys.

      • WU32MG TiCN for nickel- and cobalt-based alloys.

      Grades

      • WU32MG
        WU32MG

        Sustrato HSS de polvo de metal con alto contenido de cobalto vanadio con resistencia al calor y desgaste de PVD, recubierto de HSS-E-PM y capa base TiCN resistente al desgaste.

        S Aleaciones de alta temperatura
