      Series 6A0R
      Series 6A0R
      Series 6A0R
      Series 6A0R
      Select the files you wish to request
      Download CAD Drawings
      Send to Fusion 360

      HSS Roughers • Series 6A0R • Chamfer • Weldon® • Inch

      Series 6A0R

      Metric
      Inch
      Numéro de matériaux SAP 1839782
      Réf. catalogue ISO TC6A3R25008
      Réf. catalogue ANSI TC6A3R25008
      Revêtement TiCN
      Style adaptateur du côté machine Weldon

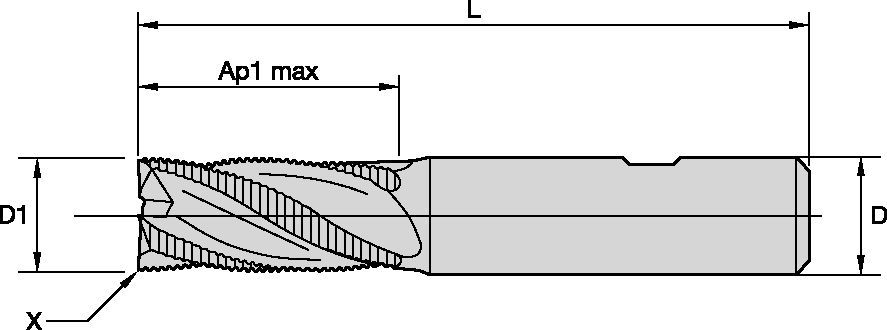

      [BCH] Largeur chanfrein de bec 0.5000 mm
      [BCH] Largeur chanfrein de bec .0200 in
      [Z] Nombre de goujures 3
      [D1] Diamètre effectif de coupe 25.4000 mm
      [D1] Diamètre effectif de coupe 1.000 in
      [D] Adaptateur / Queue / Diamètre d’alésage 25.4 mm
      [D] Adaptateur / Queue / Diamètre d’alésage 1.0 in
      [AP1MAX] 1re profondeur de coupe maximale 76.2000 mm
      [AP1MAX] 1re profondeur de coupe maximale 3.000 in
      [L] Longueur totale 139.7000 mm
      [L] Longueur totale 5.500 in
      See all Product Variants

      Uses and application

      • Fraisage de côté/avec épaulement : Bout platFraisage de côté/avec épaulement : Bout plat
      • 3850338503
      • Corner Style: Corner ChamferCorner Style: Corner Chamfer
      • 3849138491
      • Rainurage : Bout platRainurage : Bout plat
      • Ramping : ÉbaucheRamping : Ébauche
      • Dimensions de l'outil : Configuration des goujures : 3Dimensions de l'outil : Configuration des goujures : 3

      Features and benefits

      • Center cutting.

      • Chamfered profile.

      • Standard items listed. Additional styles and coatings made-to-order.
