Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge
Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge
Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge
Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge
Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge
Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge
Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge
Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge

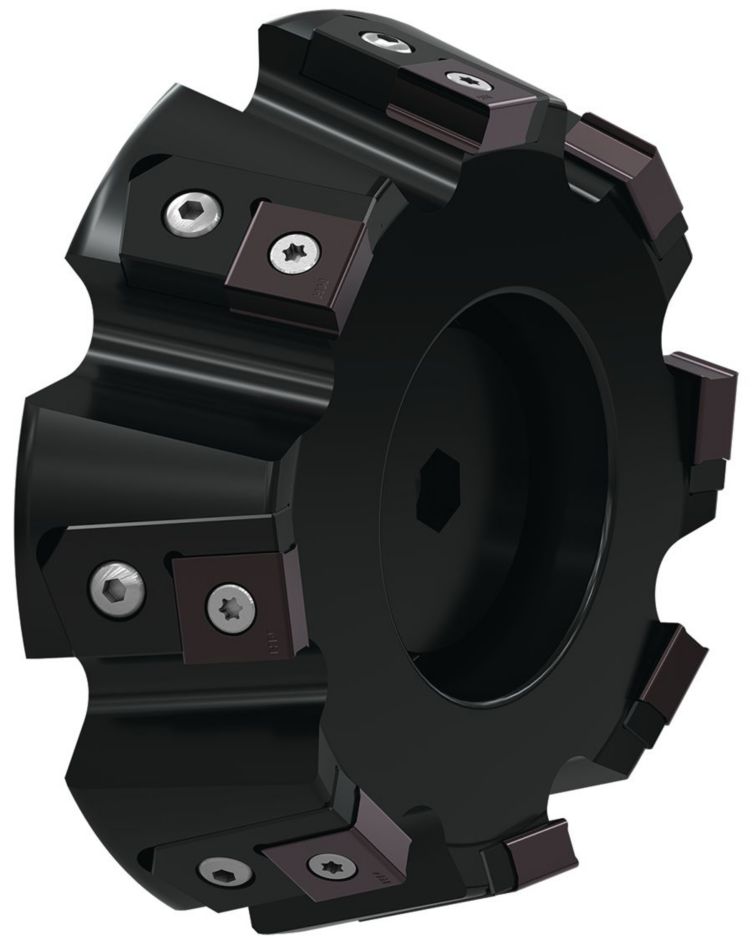

M4070 • 20° • Shell Mills • Inch

Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge

Uses and application

  • Face MillingFace Milling

Workpiece Materials

P Steel
M Stainless Steel
K Cast Iron
S High-Temp Alloys
Shell Mills • Steel and Cast Iron Face Mills at Low Cost per Edge
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • P Steel (4)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (4)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS
      (4)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS
      (4)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS
      (4)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS
      (4)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS
      (4)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS
      (4)
  • M Stainless Steel (4)
    • M1
      Austenitic Stainless Steel 130-200 HB; <600 N/mm^2 UTS
      (4)
    • M2
      High Strength Austenitic Stainless and Cast Stainless Steels 150-230 HB; <25 HRC; >600 N/mm^2 UTS
      (4)
    • M3
      Duplex Stainless Steel 135-275 HB; <30 HRC; 500-1200 N/mm^2 UTS
      (4)
  • K Cast Iron (4)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (4)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (4)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (4)
  • S High-Temp Alloys (4)
    • S4
      Titanium and Titanium Alloys 300-400 HB; 33-43 HRC; 900-1600 N/mm^2 UTS
      (4)
Cutting Diameter
Cutting Diameter
  • 6.0 in (1)
  • 8.0 in (1)
  • 10.0 in (1)
  • 12.0 in (1)
Cutting Diameter Min to Cutting Diameter Max
Cutting Diameter
Cutting Diameter
  • 152.4 mm (1)
  • 203.201 mm (1)
  • 254.0 mm (1)
  • 304.8 mm (1)
Cutting Diameter Min to Cutting Diameter Max
Maximum Cutting Diameter
Maximum Cutting Diameter
  • 165.15 mm (1)
  • 215.925 mm (1)
  • 266.725 mm (1)
  • 317.526 mm (1)
Maximum Cutting Diameter Min to Maximum Cutting Diameter Max
Maximum Cutting Diameter
Maximum Cutting Diameter
  • 6.502 in (1)
  • 8.501 in (1)
  • 10.501 in (1)
  • 12.501 in (1)
Maximum Cutting Diameter Min to Maximum Cutting Diameter Max
Reach
Reach
  • 2.38 in (3)
  • 3.15 in (1)
Reach Min to Reach Max
Reach
Reach
  • 60.45 mm (3)
  • 80.0 mm (1)
Reach Min to Reach Max
Connection Style
Connection Style
  • B-Cutter Retention Screw (1)
  • C-Bolt Circle (3)
Number of Flutes
Number of Flutes
  • 10 (1)
  • 12 (1)
  • 15 (1)
  • 8 (1)
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
  • WK15CM (4)
  • WP35CM (4)
Back-End
Back-End Diameter
Back-End Diameter
  • 50.801 mm (1)
  • 63.5 mm (3)
Back-End Diameter Min to Back-End Diameter Max
Back-End Diameter
Back-End Diameter
  • 2.0 in (1)
  • 2.5 in (3)
Back-End Diameter Min to Back-End Diameter Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 4 of 4 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D1MAX] Maximum Cutting Diameter [D1MAX] Maximum Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D4] Bolt Circle 4 [D4] Bolt Circle 3 [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [L1] Gage Length [L1] Gage Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Coolant Supply Weight Pounds
6921224 M4070U1000Z12S250LN20 M4070U1000Z12S250LN20 254.0000 10.000 266.7356 10.501 63.5 2.5 101.6000 4.000 224.9678 8.857 60.4520 2.380 60.4520 2.380 17.3000 .6811 12 N 36.20
    List price:
    ₹147,420.00 /each
    Your price:
    6921225 M4070U1200Z15S250LN20 M4070U1200Z15S250LN20 304.8000 12.000 317.5356 12.501 63.5 2.5 101.6000 4.000 225.4250 8.875 80.0100 3.150 80.0100 3.150 17.3000 .6811 15 N 66.85
      List price:
      ₹179,712.00 /each
      Your price:
      6921222 M4070U600Z08S200LN20 M4070U600Z08S200LN20 152.4000 6.000 165.1432 6.501 50.8 2.0     123.8250 4.875 60.4520 2.380 60.4520 2.380 17.3000 .6811 8 N 12.90
        List price:
        ₹80,730.00 /each
        Your price:
        6921223 M4070U800Z10S250LN20 M4070U800Z10S250LN20 203.2000 8.000 215.9356 8.501 63.5 2.5 101.6000 4.000 130.0000 5.118 60.4520 2.380 60.4520 2.380 17.3000 .6811 10 N 20.79
          List price:
          ₹118,638.00 /each
          Your price:
