Shell Mills • Cast Iron Finishing
Shell Mills • Cast Iron Finishing
Shell Mills • Cast Iron Finishing
Shell Mills • Cast Iron Finishing
Shell Mills • Cast Iron Finishing
Shell Mills • Cast Iron Finishing

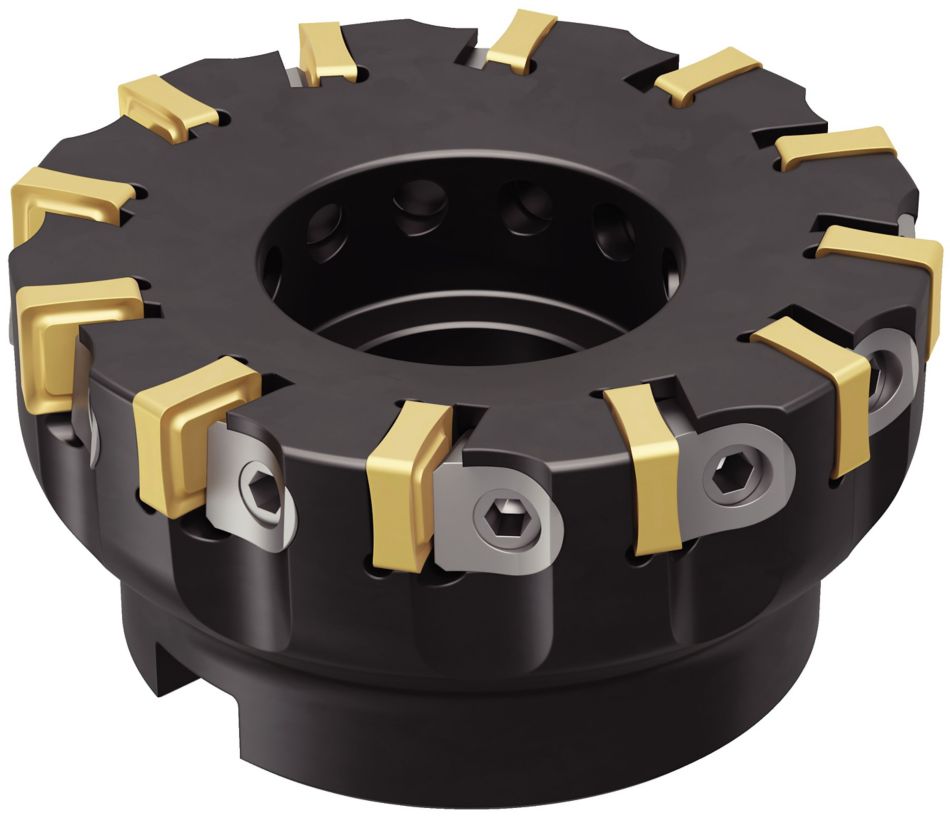

M8090 • 1° • Shell Mills • Inch

Shell Mills • Cast Iron Finishing

Workpiece Materials

K Cast Iron
Shell Mills • Cast Iron Finishing
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • K Cast Iron (6)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS
      (6)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS
      (6)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS
      (6)
Cutting Diameter
Cutting Diameter
  • 4.0 in (2)
  • 6.0 in (2)
  • 8.0 in (2)
Cutting Diameter Min to Cutting Diameter Max
Cutting Diameter
Cutting Diameter
  • 101.601 mm (2)
  • 152.4 mm (2)
  • 203.201 mm (2)
Cutting Diameter Min to Cutting Diameter Max
Maximum Cutting Diameter
Maximum Cutting Diameter
  • 101.976 mm (2)
  • 152.775 mm (2)
  • 203.576 mm (2)
Maximum Cutting Diameter Min to Maximum Cutting Diameter Max
Maximum Cutting Diameter
Maximum Cutting Diameter
  • 4.015 in (2)
  • 6.016 in (2)
  • 8.015 in (2)
Maximum Cutting Diameter Min to Maximum Cutting Diameter Max
Reach
Reach
  • 2.0 in (2)
  • 2.38 in (4)
Reach Min to Reach Max
Reach
Reach
  • 50.801 mm (2)
  • 60.45 mm (4)
Reach Min to Reach Max
Connection Style
Connection Style
  • B-Cutter Retention Screw (4)
  • C-Bolt Circle (2)
Number of Flutes
Number of Flutes
  • 10 (1)
  • 12 (1)
  • 15 (1)
  • 18 (2)
  • 24 (1)
Cutting Edges Per Insert
Cutting Edges Per Insert
  • 4.0 (6)
  • 8.0 (6)
Cutting Edges Per Insert Min to Cutting Edges Per Insert Max
Application
Grade Of Cutting Tool
Grade Of Cutting Tool
  • TN7110 (6)
  • WK15CM (6)
  • WK15PM (6)
  • WK25YM (6)
Back-End
Back-End Diameter
Back-End Diameter
  • 31.75 mm (2)
  • 50.801 mm (2)
  • 63.5 mm (2)
Back-End Diameter Min to Back-End Diameter Max
Back-End Diameter
Back-End Diameter
  • 1.25 in (2)
  • 2.0 in (2)
  • 2.5 in (2)
Back-End Diameter Min to Back-End Diameter Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 6 of 6 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch
SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D1MAX] Maximum Cutting Diameter [D1MAX] Maximum Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [D4] Bolt Circle 4 [D4] Bolt Circle 3 [D6] Hub Diameter [D6] Hub Diameter [L] Overall Length [L] Overall Length [LBX] Body Length Maximum [LBX] Body Length Maximum [L1] Gage Length [L1] Gage Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Coolant Supply Weight Pounds
6921193 M8090U400Z10S125SN12 M8090U400Z10S125SN12 101.6000 4.000 101.9785 4.014 31.75 1.25     73.0250 2.875 50.8000 2.000 50.8000 2.000 50.8000 2.000 11.5000 .4528 10 N 3.92
    List price:
    ₹58,968.00 /each
    Your price:
    6921194 M8090U400Z12S125SN12 M8090U400Z12S125SN12 101.6000 4.000 101.9785 4.014 31.75 1.25     73.0250 2.875 50.8000 2.000 50.8000 2.000 50.8000 2.000 11.5000 .4528 12 N 3.85
      List price:
      ₹61,776.00 /each
      Your price:
      6921195 M8090U600Z15S200SN12 M8090U600Z15S200SN12 152.4000 6.000 152.7785 6.014 50.8 2.0     123.8250 4.875 60.4520 2.380 60.4520 2.380 60.4520 2.380 11.5000 .4528 15 N 10.66
        List price:
        ₹77,922.00 /each
        Your price:
        6921196 M8090U600Z18S200SN12 M8090U600Z18S200SN12 152.4000 6.000 152.7785 6.014 50.8 2.0     123.8250 4.875 60.4520 2.380 60.4520 2.380 60.4520 2.380 11.5000 .4528 18 N 10.56
          List price:
          ₹85,644.00 /each
          Your price:
          6921197 M8090U800Z18S250SN12 M8090U800Z18S250SN12 203.2000 8.000 203.5785 8.014 63.5 2.5 101.6000 4.000 130.0000 5.118 60.4520 2.380 60.4520 2.380 60.4520 2.380 11.5000 .4528 18 N 15.21
            List price:
            ₹104,598.00 /each
            Your price:
            6921198 M8090U800Z24S250SN12 M8090U800Z24S250SN12 203.2000 8.000 203.5785 8.014 63.5 2.5 101.6000 4.000 130.0000 5.118 60.4520 2.380 60.4520 2.380 60.4520 2.380 11.5000 .4528 24 N 15.01
              List price:
              ₹112,320.00 /each
              Your price:
