SNMG-6P

Inserts

Inserts
Filters and Columns
Select Filters
Filters
Filters
View filters in
Metric
Inch
Key Filters
Workpiece Material
Workpiece Material
  • P Steel (3)
    • P0
      Low-Carbon Steels, Long Chipping C < .25%; <125 HB; <530 N/mm^2 UTS (3)
    • P1
      Low-Carbon Steels, Short Chipping C < .25%; <125 HB; <530 N/mm^2 UTS (3)
    • P2
      Medium and High Carbon Steels C < .25%; <220 HB; <25 HRC; >530 N/mm^2 UTS (3)
    • P3
      Alloy Steels & Tool Steels C > .25%; <330 HB; <35 HRC; 600-850 N/mm^2 UTS (3)
    • P4
      Alloy Steels & Tool Steels C > .25%; 350-420 HB; 35-43 HRC; 850-1400 N/mm^2 UTS (3)
    • P5
      Ferritic, Martensitic, and PH Stainless Steels <330 HB; <35 HRC; 600-900 N/mm^2 UTS (3)
    • P6
      High Strength Ferritic, Martensitic, and PH Stainless Steels 350-450 HB; 35-43 HRC; 900-2400 N/mm^2 UTS (3)
  • K Cast Iron (2)
    • K1
      Gray Cast Iron 120-290 HB; <32 HRC; 125-500 N/mm^2 UTS (2)
    • K2
      Low and Medium Strength CGI and Ductile Irons 130-260 HB; <28 HRC; <600 N/mm^2 UTS (2)
    • K3
      High Strength Ductile and Austempered Ductile Iron 180-350 HB; <43 HRC; >600 N/mm^2 UTS (2)
Select All Star
  • IN (1)
Cutting Condition
Cutting Condition
  • Heavily Interrupted Cut (1)
  • Lightly Interrupted Cut (2)
  • Smooth Cut (3)
  • Varying Depth of Cut (1)
Corner configuration
Corner Radius
Corner Radius
  • 0.031 in (2)
  • 0.047 in (1)
Corner Radius Min to Corner Radius Max
Corner Radius
Corner Radius
  • 0.8 mm (2)
  • 1.201 mm (1)
Corner Radius Min to Corner Radius Max
Application
Minimum Depth of Cut
Minimum Depth of Cut
Minimum Feed
Minimum Feed
Grade Of Cutting Tool
Grade Of Cutting Tool
  • TN10P (1)
  • TN20P (1)
  • TN30P (1)
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 3 of 3 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

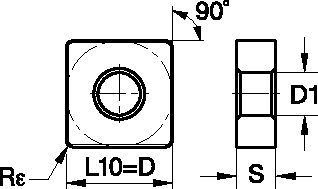

SAP Material Number ISO Catalog Number ANSI Catalog Number Grade First Choice [Rε] Corner Radius [Rε] Corner Radius [D1] Insert Hole Size [D1] Insert Hole Size [S] Insert Thickness [S] Insert Thickness [L10] Insert Cutting Edge Length [L10] Insert Cutting Edge Length [D] Insert IC Size [D] Insert IC Size
4166808 SNMG1204086P SNMG4326P TN10P   0.8 .0312 5.16 .2031 4.76 .1875 12.7 .5 12.7 .5
    List price:
    ₹595.00 /each
    Your price:
    4166809 SNMG1204086P SNMG4326P TN20P   0.8 .0312 5.16 .2031 4.76 .1875 12.7 .5 12.7 .5
      List price:
      ₹573.00 /each
      Your price:
      4166815 SNMG1204126P SNMG4336P TN30P   1.2 .0468 5.16 .2031 4.76 .1875 12.7 .5 12.7 .5
        List price:
        ₹537.00 /each
        Your price:
