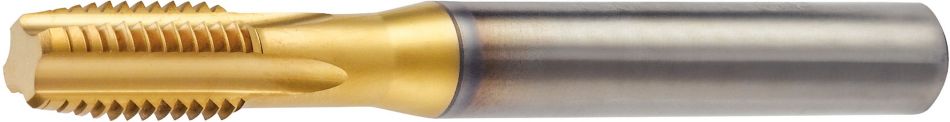

Tapping: Through Hole
Class of Fit: 6HX
Chamfer Form D (3.5–5)
HM
Manufacturer’s Specs: M
Manufacturer’s Specs: MF
Flood Coolant: TappingDownloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 3170978 |
| ISO Catalog ID | 12432 |
| ANSI Catalog ID | 12432 |
| Grade | WK12PG |
| [D1-TDZ] Thread Diameter Size | M20 X 2,5 |
| [L] Overall Length | 140 mm |
| [L] Overall Length | 5.51 in |
| [L3] Thread Length | 30 mm |
| [L3] Thread Length | 1.18 in |
| [L2] Useable Length | 80 mm |
| [L2] Useable Length | 3.15 in |
| [D] Adapter / Shank / Bore Diameter | 18 mm |
| [D] Adapter / Shank / Bore Diameter | 0.7087 in |
| [Z] Number of Flutes | 5 |
| Thread Tolerance Class ISO | 6HX-I |
Tapping: Through HoleClass of Fit: 6HXChamfer Form D (3.5–5)HMManufacturer’s Specs: MManufacturer’s Specs: MFFlood Coolant: TappingGrades
WK12PG
PVD coated TiCN and fine grain carbide. Extraordinary wear resistance when tapping cast iron. High-temperature hardness allows long life at up to 4x faster speed than HSS-E-PM taps.
Create Solution to calculate Feeds and Speeds
After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.
