| Material Number | 6858588 |
| ISO Catalog ID | TCF100408EPDU |
| ANSI Catalog ID | TCF100408EPDU |
| Grade | WU20PH |

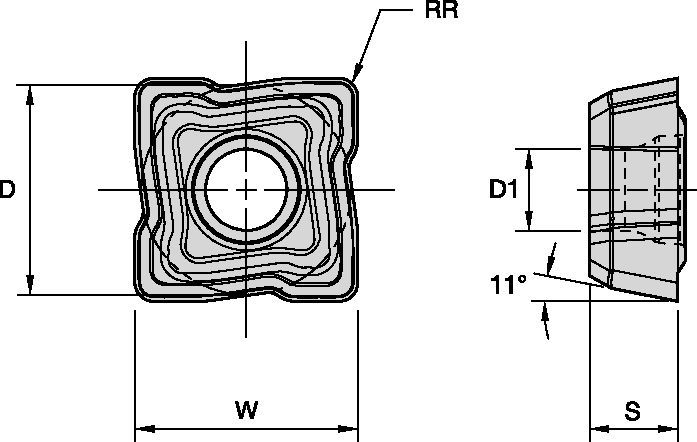

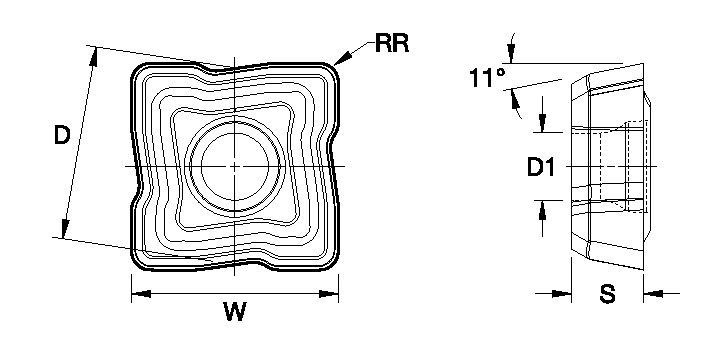

| [D] Insert IC Size | 9.961 mm |
| [D] Insert IC Size | 0.392 in |
| [D1] Insert Hole Size | 3.4 mm |
| [D1] Insert Hole Size | 0.134 in |
| [W] Cutting Width | 10.6 mm |
| [W] Cutting Width | 0.417 in |
| [S] Insert Thickness | 3.6 mm |
| [S] Insert Thickness | 0.142 in |
| [RR] Corner Radius | 0.8 mm |
| [RR] Corner Radius | 0.031 in |
| Insert Size | E |
Grades
WU20PH
Composition: With a wear-resistant TiAIN coating and unalloyed, submicron tungsten carbide containing 10% cobalt.
Application: This is a universal grade for use in steel, cast iron, stainless steel, and super alloys at medium machining speeds.
