| Material Number | 5542009 |
| ISO Catalog ID | TCF180614HPV36 |
| ANSI Catalog ID | TCF180614HPV36 |
| Grade | WU25CH |

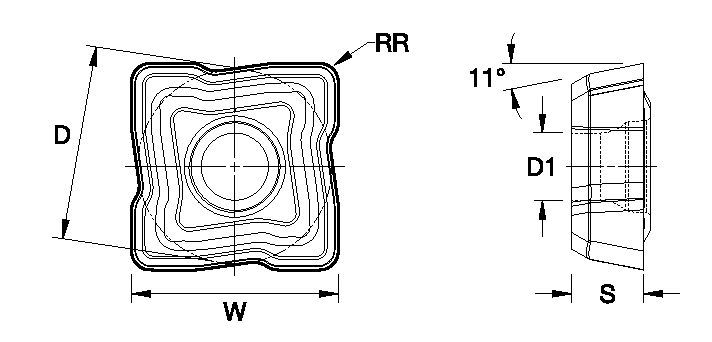

| [D] Insert IC Size | 18.043 mm |
| [D] Insert IC Size | 0.71 in |
| [D1] Insert Hole Size | 7.5 mm |
| [D1] Insert Hole Size | 0.295 in |
| [W] Cutting Width | 19.2 mm |
| [W] Cutting Width | 0.756 in |
| [S] Insert Thickness | 6.5 mm |
| [S] Insert Thickness | 0.256 in |
| [RR] Corner Radius | 1.4 mm |
| [RR] Corner Radius | 0.055 in |
| Insert Size | H |
Grades
WU25CH
Composition: Advanced CVD TiCN-Al2O3 coating together with a newly engineered, tough carbide substrate. Ensures adequate deformation resistance and excellent edge strength and offers very good wear resistance over a wide range of
machining conditions.
Application: high-productivity grade with high speeds and feeds. First choice
for high productivity with excellent reliability in steels, stainless steels, and cast irons.
