      Download CAD Drawings

      CRDP

      Metric
      Inch
      Codice materiale SAP 3871512
      Codice catalogo ISO CRDPN3232P09V
      Codice catalogo ANSI CRDPN3232P09V
      Qualità WG

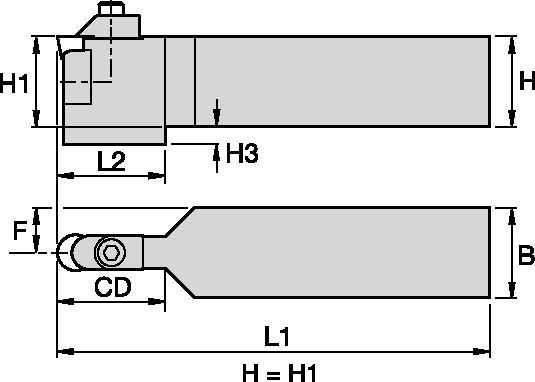

      [H] Altezza stelo 32.0000 mm
      [H] Altezza stelo 1.259 in
      [B] Larghezza stelo 32.0000 mm
      [B] Larghezza stelo 1.259 in
      [F] Dimensione F 16.0000 mm
      [F] Dimensione F .6299 in
      [L1] Lunghezza utensile 170.0000 mm
      [L1] Lunghezza utensile 6.693 in
      [CD] Profondità di taglio 29.0000 mm
      [CD] Profondità di taglio 1.141 in
      Inserto di riferimento R..X090700E
      See all Product Variants

      Uses and application

      • TurningTurning
      • FacingFacing
      • ProfilingProfiling

      Grades

      • WG
        S Leghe resistenti al calore
        H Materiali temprati
        K Ghisa

      Parti di ricambio for CRDP

      Spare Part
        Insert NST2 Insert NST2
        Insert NST2
        Spare Part
          STEEL CLAMPS V-BOTTOM HOLDERS STEEL CLAMPS V-BOTTOM HOLDERS
          STEEL CLAMPS V-BOTTOM HOLDERS
          Spare Part
            Spare Part CS412 Spare Part CS412
            Spare Part CS412
