Whistle Notchアダプター

Whistle Notch™ Adapters

使用法と用途

  • 軸方向調整 — エンド軸方向調整 — エンド
  • シャンク — KM-TS ISO 26622シャンク — KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • シャンク — ストレートWeldon DIN 6535/1835シャンク — ストレートWeldon DIN 6535/1835
  • シャンク — ストレート Whistle Notch™シャンク — ストレート Whistle Notch™
  • Coolant — Through Coolant  100 bar (1500 psi)  MaximumCoolant — Through Coolant 100 bar (1500 psi) Maximum
  • クーラント — スルークーラント 最大100 bar(1500 psi)クーラント — スルークーラント 最大100 bar(1500 psi)
フィルタを選択
Filters
フィルタ
フィルタ表示
メートル
インチ
frontEnd
Gage Length
Gage Length
  • 3.938 in (1)
  • 4.134 in (1)
Gage Length
Gage Length
  • 100 mm (1)
  • 105 mm (1)
Front End Size
Front End Size
  • 0.038 in (1)
  • 0.049 in (1)
Front End Size Min to Front End Size Max
Front End Size
Front End Size
  • 25.0 mm (1)
  • 32.0 mm (1)
Front End Size Min to Front End Size Max
No filters matching ""
以下に示すパラメータのいずれかを使用して表示列を変更することができます。最大7列まで表示できます。
表示 1- 2 / 2 結果
列を選択
フィルタを選択
メートル
インチ
表示
メートル
インチ

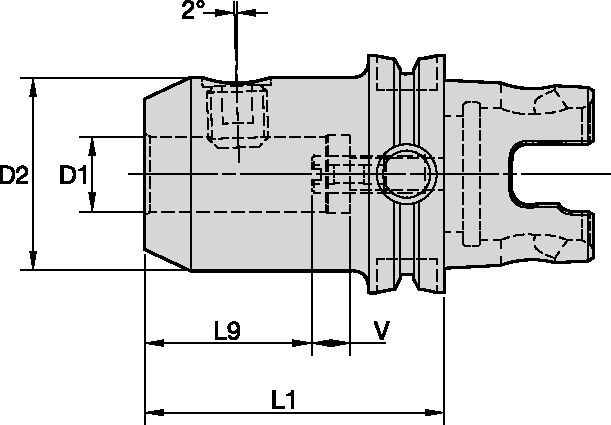

SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length [V] Adjustment Range [V] Adjustment Range Clamp Screw ID Drive Size Torque Newton Meters Stop Screw ID Drive Size Weight Kilograms
3670135 KM80TSWN25100M KM80TSWN25100M 25.0000 .9843 64.5000 2.539 100.0000 3.937 50.0000 1.969 10.0000 .3937 10 mm 135.000 6 mm 2.78
    定価:
    $683.35 /各
    価格::
    数量
    3670136 KM80TSWN32105M KM80TSWN32105M 32.0000 1.259 71.5000 2.815 105.0000 4.134 54.0000 2.126 10.0000 .3937 10 mm 160.000 6 mm 3.22
      定価:
      $683.35 /各
      価格::
      数量
      定価:
      割引: %
      価格::
      配置転換 この品目はありません
      交換品 この品目は、代理店経由で入手できる場合があります
      数量

      販売包装単位
