Series 570T • Radiused • 5 Flutes • Cylindrical Shank • Inch

SDS

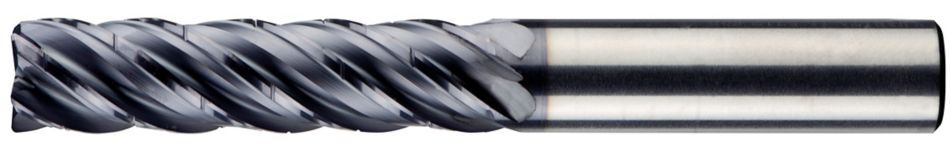

VariMill™ Chip Splitter • Series 570T • Radiused • 5 Flute • Cylindrical Shank • Inch

Name: VariMill™ Chip Splitter • Series 570T • Radiused • 5 Flute • Cylindrical Shank • Inch
SKU: 6853747

Series 570T • Radiused • 5 Flutes • Cylindrical Shank • Inch

メートル

インチ

SAP Material Number	6853747
ISO Catalog Number	570TE19009RET
ANSI Catalog Number	570TE19009RET
Grade	WP15PE
Adapter Style Machine Side	Straight-Cylindrical
[Re] Corner Radius	0.7620 mm
[Re] Corner Radius	.0300 in
[Z] Number of Flutes	5
[D1] Effective Cutting Diameter	19.0500 mm
[D1] Effective Cutting Diameter	.7500 in
[D] Adapter / Shank / Bore Diameter	19.05 mm
[D] Adapter / Shank / Bore Diameter	.75 in
[AP1MAX] 1st Maximum Cutting Depth	57.1500 mm
[AP1MAX] 1st Maximum Cutting Depth	2.250 in
[L] Overall Length	127.0000 mm
[L] Overall Length	5.000 in

すべての改良品を表示

使用法と用途

ヘリカルミーリング
ランピング加工：ブランク
Trochoidal Milling
側面加工／ショルダー加工：スクエアエンド

ワーク材料

P Steel

M Stainless Steel

K Cast Iron

S High-Temp Alloys

H Hardened Materials

等級

WP15PE

Coated carbide grade with thick PVD coating and optimised chemistry and process for increased wear resistance. Outstanding protection in milling of steels to mitigate crater, DOCN (depth-of-cut notching), and flank wear. Excellent performance up to 52 HRC.

P Steel

S High-Temp Alloys

H Hardened Materials

K Cast Iron

M Stainless Steel

Application Data • Series 570T - 571T - 572T • Side Milling • ae = 10% of D1 • 5 Flutes • Inch

		<="" td="">		<="" td="" />
		Frezowanie walcowe		WP15PE			Recommended feed per tooth (fz=IPT) for side milling at ae = 10% of D1
				Prędkość skrawania Vc SFM			D1 Średnica
Grupa materiałowa		ap	ae	min.	Początek	maks.	ułamek	3/8	1/2	5/8	3/4	1
P	0	ap max	0.1 x D1	880	1030	1180	IPT	.0034	.0039	.0048	.0054	.0059
	1	ap max	0.1 x D1	880	1030	1180	IPT	.0034	.0039	.0048	.0054	.0059
	2	ap max	0.1 x D1	830	990	1125	IPT	.0034	.0039	.0048	.0054	.0059
	3	ap max	0.1 x D1	710	830	954	IPT	.0024	.0033	.0041	.0048	.0054
	4	ap max	0.1 x D1	530	705	880	IPT	.0026	.0030	.0036	.0042	.0046
	5	ap max	0.1 x D1	350	470	590	IPT	.0023	.0026	.0033	.0038	.0043
	6	ap max	0.1 x D1	295	370	440	IPT	.0019	.0022	.0027	.0031	.0033
M	1	ap max	0.1 x D1	530	600	675	IPT	.0029	.0033	.0041	.0048	.0054
	2	ap max	0.1 x D1	350	405	465	IPT	.0023	.0026	.0033	.0038	.0043
	3	ap max	0.1 x D1	350	380	410	IPT	.0019	.0022	.0027	.0031	.0033
K	1	ap max	0.1 x D1	710	795	880	IPT	.0034	.0039	.0048	.0054	.0059
	2	ap max	0.1 x D1	650	740	820	IPT	.0029	.0033	.0041	.0048	.0054
	3	ap max	0.1 x D1	650	705	765	IPT	.0023	.0026	.0033	.0038	.0043
S	1	ap max	0.1 x D1	295	410	530	IPT	.0029	.0033	.0041	.0048	.0054
	2	ap max	0.1 x D1	145	190	235	IPT	.0015	.0018	.0022	.0026	.0029
	3	ap max	0.1 x D1	145	190	235	IPT	.0015	.0018	.0022	.0026	.0029
	4	ap max	0.1 x D1	295	320	350	IPT	.0021	.0024	.0030	.0035	.0039
H	1	ap max	0.1 x D1	470	640	820	IPT	.0026	.0030	.0036	.0042	.0046
	2	ap max	0.1 x D1	415	560	710	IPT	.0019	.0022	.0027	.0031	.0033

Application Data • Series 570T - 571T - 572T • Side Milling • ae = 5% of D1 • 5 Flutes • Inch

		<="" td="">		<="" td="" />
		Frezowanie walcowe		WP15PE			Recommended feed per tooth (fz=IPT) for side milling at ae = 5% of D1
				Prędkość skrawania Vc SFM			D1 Średnica
Grupa materiałowa		ap	ae	min.	Początek	maks.	ułamek	3/8	1/2	5/8	3/4	1
P	0	ap max	0.05 x D1	980	1145	1310	IPT	.0050	.0050	.0060	.0070	.0080
	1	ap max	0.05 x D1	980	1145	1310	IPT	.0050	.0050	.0060	.0070	.0080
	2	ap max	0.05 x D1	920	1100	1250	IPT	.0050	.0050	.0060	.0070	.0080
	3	ap max	0.05 x D1	790	920	1050	IPT	.0040	.0040	.0060	.0060	.0070
	4	ap max	0.05 x D1	590	785	980	IPT	.0030	.0040	.0050	.0060	.0060
	5	ap max	0.05 x D1	390	525	660	IPT	.0030	.0040	.0040	.0050	.0060
	6	ap max	0.05 x D1	330	410	490	IPT	.0030	.0030	.0040	.0040	.0050
M	1	ap max	0.05 x D1	590	670	750	IPT	.0040	.0040	.0060	.0060	.0070
	2	ap max	0.05 x D1	390	455	520	IPT	.0030	.0040	.0040	.0050	.0060
	3	ap max	0.05 x D1	390	425	460	IPT	.0030	.0030	.0040	.0040	.0050
K	1	ap max	0.05 x D1	790	885	980	IPT	.0050	.0050	.0060	.0070	.0080
	2	ap max	0.05 x D1	720	820	920	IPT	.0040	.0040	.0060	.0060	.0070
	3	ap max	0.05 x D1	720	785	850	IPT	.0030	.0040	.0040	.0050	.0060
S	1	ap max	0.05 x D1	330	460	590	IPT	.0040	.0040	.0060	.0060	.0070
	2	ap max	0.05 x D1	160	210	260	IPT	.0020	.0020	.0030	.0030	.0040
	3	ap max	0.05 x D1	160	210	260	IPT	.0020	.0020	.0030	.0030	.0040
	4	ap max	0.05 x D1	330	360	390	IPT	.0030	.0030	.0040	.0050	.0050
H	1	ap max	0.05 x D1	520	720	920	IPT	.0030	.0040	.0050	.0040	.0060
	2	ap max	0.05 x D1	460	625	790	IPT	.0030	.0030	.0040	.0040	.0050

Application Data • Series 570T - 571T - 572T • Side Milling • ae = 2% of D1 • 5 Flutes • Inch

Grupa materiałowa		<="" td="">		<="" td="" />
		Frezowanie walcowe		WP15PE			Recommended feed per tooth (fz=IPT) for side milling at ae = 2% of D1
				Prędkość skrawania Vc SFM			D1 Średnica
Grupa materiałowa		ap	ae	min.	Początek	maks.	ułamek	3/8	1/2	5/8	3/4	1
P	0	ap max	0.02 x D1	1000	1170	1330	IPT	.0070	.0080	.0090	.0011	.0110
	1	ap max	0.02 x D1	1000	1170	1330	IPT	.0070	.0080	.0090	.0011	.0110
	2	ap max	0.02 x D1	340	1120	1275	IPT	.0070	.0080	.0090	.0011	.0110
	3	ap max	0.02 x D1	805	940	1070	IPT	.0060	.0060	.0080	.0090	.0100
	4	ap max	0.02 x D1	600	800	1000	IPT	.0050	.0060	.0070	.0080	.0090
	5	ap max	0.02 x D1	400	535	670	IPT	.0040	.0050	.0060	.0070	.0080
	6	ap max	0.02 x D1	335	420	500	IPT	.0040	.0040	.0050	.0060	.0070
M	1	ap max	0.02 x D1	600	680	765	IPT	.0060	.0060	.0080	.0090	.0100
	2	ap max	0.02 x D1	400	460	530	IPT	.0040	.0050	.0060	.0070	.0080
	3	ap max	0.02 x D1	400	430	470	IPT	.0040	.0040	.0050	.0060	.0070
K	1	ap max	0.02 x D1	805	900	1000	IPT	.0070	.0080	.0090	.0110	.0110
	2	ap max	0.02 x D1	735	830	940	IPT	.0060	.0060	.0080	.0090	.0100
	3	ap max	0.02 x D1	735	800	860	IPT	.0040	.0050	.0060	.0070	.0080
S	1	ap max	0.02 x D1	330	470	600	IPT	.0060	.0060	.0080	.0090	.0100
	2	ap max	0.02 x D1	165	215	265	IPT	.0030	.0030	.0040	.0050	.0060
	3	ap max	0.02 x D1	165	215	265	IPT	.0030	.0030	.0040	.0050	.0060
	4	ap max	0.02 x D1	330	360	390	IPT	.0040	.0050	.0060	.0070	.0080
H	1	ap max	0.02 x D1	530	730	930	IPT	.0050	.0060	.0070	.0080	.0090
	2	ap max	0.02 x D1	470	630	800	IPT	.0040	.0040	.0050	.0060	.0070
