Płytki do ponownego profilowania kół kolejowych • LNUX-13

LNUX-13

Metryczne
Calowe
SAP Material Number 4170966
ISO Catalog Number LNUX19194013
ANSI Catalog Number LNUX19194013
Grade WK20CT

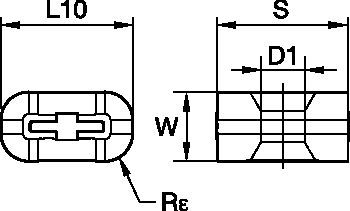

[W] Insert Width 10 mm
[W] Insert Width .3937 in
[L10] Insert Cutting Edge Length 19.05 mm
[L10] Insert Cutting Edge Length .75 in
[S] Insert Thickness 19.05 mm
[S] Insert Thickness .75 in
[Rε] Corner Radius 4 mm
[Rε] Corner Radius .1575 in
[D1] Insert Hole Size 6.35 mm
[D1] Insert Hole Size .25 in
Zobacz wszystkie warianty produktów

Materiały przedmiotu obrabianego

P Steel
K Cast Iron
