iC10 • Концевые фрезы с цилиндрическим хвостовиком

Download CAD Drawings

Концевые фрезы с цилиндрическим хвостовиком

Name: Концевые фрезы с цилиндрическим хвостовиком
SKU: 5210279

iC10 • Концевые фрезы с цилиндрическим хвостовиком

Метрическая система

Дюймовая система

SAP Material Number	5210279
ISO Catalog Number	M200D25Z03A25RN10L150
ANSI Catalog Number	M200D25Z03A25RN10L150

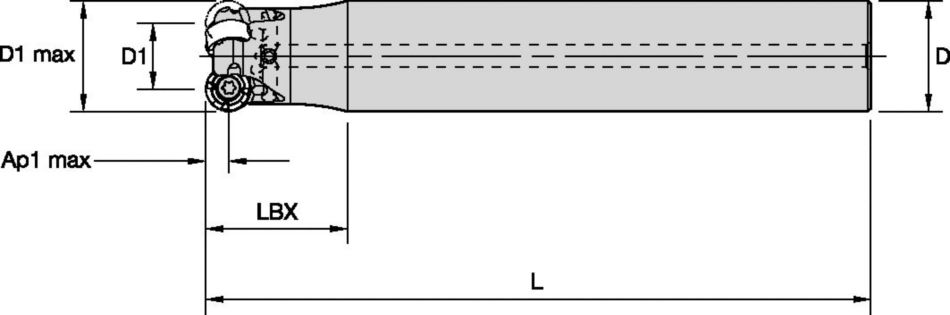

[D1MAX] Maximum Cutting Diameter	25.0000 mm
[D1MAX] Maximum Cutting Diameter	.9840 in
[D1] Effective Cutting Diameter	15.0000 mm
[D1] Effective Cutting Diameter	.5910 in
[D] Adapter / Shank / Bore Diameter	25.0 mm
[D] Adapter / Shank / Bore Diameter	.984 in
[L] Overall Length	150.0000 mm
[L] Overall Length	5.906 in
[LBX] Body Length Maximum	32.0000 mm
[LBX] Body Length Maximum	1.260 in
[AP1MAX] 1st Maximum Cutting Depth	4.9600 mm
[AP1MAX] 1st Maximum Cutting Depth	.1950 in
Number of Inserts	3
Maximum Ramping Angle	0.600
Max RPM	54700
Coolant Supply	Y
Weight Kilograms	0.50

Посмотреть все варианты продукции

Использование и область применения

Shank - Cylindrical Plain
3D Profiling
Side Milling/Shoulder Milling: Ball Nose
Slotting: Square End
Face Milling
Pocketing
Milling - Through Coolant

Обрабатываемый материал

P Steel

M Stainless Steel

K Cast Iron

N Non-Ferrous

S High-Temp Alloys

H Hardened Materials

Характеристики и преимущества

Двусторонняя пластина с восемью режущими кромками.

Система предотвращения вращения обеспечивает высокую стабильность при увеличенных подачах.

Возможность обработки карманов и контурной обработки.

Insert Selection Guide

	Light Machining		General Purpose		Heavy Machining
Material Group	Geometry	Grade	Geometry	Grade	Geometry	Grade
P1–P2	ML	WP25PM	MM	WP40PM	MM	WP40PM
P3–P4	ML	WP25PM	MM	WP25PM	MH	WP40PM
P5–P6	ML	WP35CM	MM	WP35CM	MH	WP35CM
M1–M2	ML	WP25PM	ML	WU35PM	MM	WU35PM
M3	ML	WP25PM	MM	WU35PM	MM	WU35PM
K1–K2	MH	WK15CM	MH	WK15CM	MH	WP20CM
K3	MH	WK15CM	MH	WK15CM	MH	WP25PM
N1–N2	ALP	WN25PM	ALP	WN25PM	ALP	WN25PM
N3	ALP	WN25PM	ALP	WN25PM	ALP	WN25PM
S1–S2	ML	WS30PM	MM	WS30PM	MM	WU35PM
S3	ML	WS30PM	MM	WU35PM	MM	WU35PM
S4	ML	WS30PM	MM	WU35PM	MM	WU35PM
H1	MH	WP25PM	MH	WP20CM	–	–

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40 100 %
ALP	0,12	0,20	0,28	0,08	0,15	0,20	0,06	0,11	0,15	0,06	0,09	0,13	0,05	0,09	0,12	ALP
ML	0,13	0,44	0,80	0,10	0,32	0,57	0,07	0,24	0,43	0,06	0,21	0,37	0,06	0,19	0,34	ML
MM	0,28	0,50	0,91	0,20	0,36	0,66	0,15	0,27	0,49	0,13	0,24	0,43	0,12	0,22	0,39	MM
MH	0,46	0,58	0,96	0,33	0,42	0,69	0,25	0,31	0,51	0,22	0,27	0,45	0,20	0,25	0,41	MH

Light Machining

General Purpose

Heavy Machining

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40 100 %
ALP	0,12	0,20	0,28	0,08	0,15	0,20	0,06	0,11	0,15	0,06	0,09	0,13	0,05	0,09	0,12	ALP
ML	0,27	0,92	1,67	0,20	0,66	1,19	0,15	0,49	0,89	0,13	0,43	0,77	0,12	0,39	0,71	ML
MM	0,58	1,05	1,92	0,42	0,75	1,37	0,31	0,56	1,02	0,27	0,49	0,88	0,25	0,45	0,81	MM
MH	0,96	1,21	2,02	0,69	0,87	1,43	0,52	0,65	1,06	0,45	0,56	0,93	0,41	0,52	0,85	MH

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40 100 %
ALP	0,12	0,20	0,28	0,08	0,15	0,20	0,06	0,11	0,15	0,06	0,09	0,13	0,05	0,09	0,12	ALP
ML	0,15	0,51	0,92	0,11	0,37	0,66	0,08	0,27	0,49	0,07	0,24	0,43	0,07	0,22	0,39	ML
MM	0,32	0,58	1,06	0,23	0,42	0,76	0,18	0,31	0,57	0,15	0,27	0,49	0,14	0,25	0,45	MM
MH	0,54	0,67	1,11	0,39	0,48	0,80	0,29	0,36	0,59	0,25	0,32	0,52	0,23	0,29	0,47	MH

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5 %			10 %			20 %			30 %			40 100 %
ALP	0,12	0,20	0,28	0,08	0,15	0,20	0,06	0,11	0,15	0,06	0,09	0,13	0,05	0,09	0,12	ALP
ML	0,20	0,67	1,21	0,14	0,48	0,87	0,11	0,36	0,65	0,09	0,31	0,56	0,09	0,29	0,52	ML
MM	0,43	0,77	1,39	0,31	0,55	1,00	0,23	0,41	0,74	0,20	0,36	0,65	0,18	0,33	0,59	MM
MH	0,70	0,88	1,46	0,51	0,63	1,04	0,38	0,47	0,78	0,33	0,41	0,68	0,30	0,38	0,62	MH

Light Machining

General Purpose

Heavy Machining

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5%			10%			20%			30%			40 100%
ALP	.005	.007	.009	.003	.005	.007	.003	.004	.005	.002	.003	.004	.002	.003	.004	ALP
ML	.005	.017	.031	.004	.013	.023	.003	.009	.017	.002	.008	.015	.002	.008	.014	ML
MM	.011	.020	.036	.008	.014	.026	.006	.011	.019	.005	.009	.017	.005	.009	.015	MM
MH	.018	.023	.038	.013	.016	.027	.010	.012	.020	.009	.011	.018	.008	.010	.016	MH

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5%			10%			20%			30%			40 100%
ALP	.005	.007	.009	.003	.005	.007	.003	.004	.005	.002	.003	.004	.002	.003	.004	ALP
ML	.006	.020	.036	.004	.014	.026	.003	.011	.020	.003	.009	.017	.003	.009	.016	ML
MM	.013	.023	.041	.009	.016	.030	.007	.012	.022	.006	.011	.019	.005	.010	.018	MM
MH	.021	.026	.044	.015	.019	.031	.011	.014	.023	.010	.012	.020	.009	.011	.019	MH

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5%			10%			20%			30%			40 100%
ALP	.005	.007	.009	.003	.005	.007	.003	.004	.005	.002	.003	.004	.002	.003	.004	ALP
ML	.011	.036	.066	.008	.026	.047	.006	.019	.035	.005	.017	.030	.005	.015	.028	ML
MM	.023	.041	.075	.016	.029	.053	.012	.022	.040	.011	.019	.035	.010	.018	.032	MM
MH	.038	.048	.079	.027	.034	.056	.020	.025	.042	.018	.022	.036	.016	.020	.033	MH

Insert Geometry	Programmed Feed per Tooth (fz) at a % of Radial Depth of Cut (ae)															Insert Geometry
	5%			10%			20%			30%			40 100%
ALP	.005	.007	.009	.003	.005	.007	.003	.004	.005	.002	.003	.004	.002	.003	.004	ALP
ML	.008	.026	.048	.006	.019	.034	.004	.014	.026	.004	.012	.022	.003	.011	.020	ML
MM	.017	.030	.054	.012	.022	.039	.009	.016	.029	.008	.014	.025	.007	.013	.023	MM
MH	.028	.035	.058	.020	.025	.041	.015	.019	.031	.013	.016	.027	.012	.015	.024	MH

Recommended Starting Speeds [SFM]

Material Group		WK15CM			WN25PM			WP20CM			WP25PM			WP35CM			WP40PM			WS30PM			WU35PM
P	1	–	–	–	–	–	–	2165	1910	1770	1295	1120	1060	1790	1555	1460	1165	1025	965	1460	1260	1180	1025	905	845
	2	–	–	–	–	–	–	1340	1220	1080	1080	940	785	1105	1000	905	985	845	710	1200	1060	865	865	750	630
	3	–	–	–	–	–	–	1220	1080	1000	1000	845	690	1000	905	805	905	770	630	1120	940	770	785	670	550
	4	–	–	–	–	–	–	905	845	750	890	725	590	750	690	630	805	670	535	985	805	650	710	590	475
	5	–	–	–	–	–	–	1080	985	905	725	670	590	1025	905	830	670	610	535	805	750	650	590	535	475
	6	–	–	–	–	–	–	750	670	570	650	490	395	630	535	430	590	450	355	725	550	430	510	395	310
M	1	–	–	–	–	–	–	890	785	690	805	710	650	805	725	610	770	670	610	890	785	725	670	590	535
	2	–	–	–	–	–	–	805	690	630	725	630	510	725	630	550	690	590	490	805	710	570	610	510	430
	3	–	–	–	–	–	–	630	570	490	550	475	370	570	510	450	510	450	355	610	535	415	450	395	310
K	1	1655	1520	1340	–	–	–	1415	1280	1165	905	805	725	1165	1045	940	–	–	–	–	–	–	–	–	–
	2	1320	1165	1080	–	–	–	1120	1000	925	710	630	590	925	830	750	–	–	–	–	–	–	–	–	–
	3	1105	985	905	–	–	–	940	845	785	590	535	475	770	690	630	–	–	–	–	–	–	–	–	–
N	1	–	–	–	4230	3720	3445	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	2	–	–	–	3720	3445	2995	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	3720	3445	2995	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
S	1	–	–	–	–	–	–	–	–	–	155	140	95	–	–	–	155	140	120	180	155	120	140	120	95
	2	–	–	–	–	–	–	–	–	–	155	140	95	–	–	–	155	140	120	180	155	120	140	120	95
	3	–	–	–	–	–	–	–	–	–	200	155	95	–	–	–	200	155	120	215	180	120	180	140	95
	4	–	–	–	–	–	–	–	–	–	275	200	140	260	200	130	260	200	140	335	235	155	235	180	120
H	1	–	–	–	–	–	–	550	450	370	475	355	275	–	–	–	–	–	–	535	395	295	–	–	–
	2	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
	3	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–	–
