| SAP Material Number | 6391697 |
| ISO Catalog Number | TACU018KM63SR60908176 |
| ANSI Catalog Number | TACU018KM63SR60908176 |

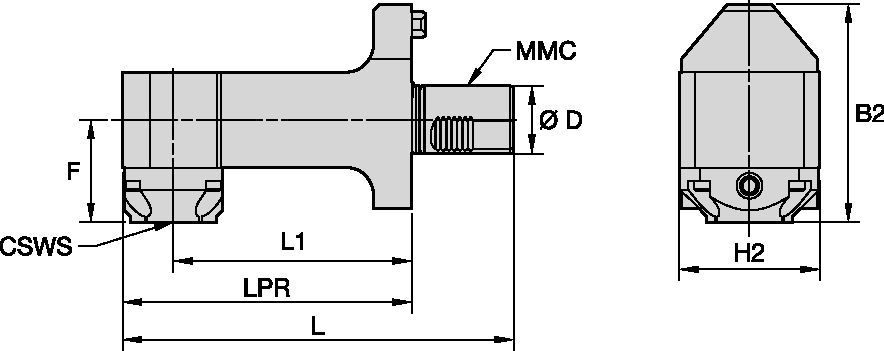

| [CSWS] System Size Workpiece Side | KM63 |
| Machine Mount Code | 018 |
| [B2] Overall Width | 160.0000 mm |
| [B2] Overall Width | 6.299 in |
| [D] Adapter / Shank / Bore Diameter | 50.0 mm |
| [D] Adapter / Shank / Bore Diameter | 1.969 in |
| [F] F Dimension | 75.0000 mm |
| [F] F Dimension | 2.953 in |
| [H2] Overall Height | 103.0000 mm |
| [H2] Overall Height | 4.056 in |
| [L] Overall Length | 287.0000 mm |
| [L] Overall Length | 11.299 in |
| [L1] Gage Length | 175.0000 mm |
| [L1] Gage Length | 6.890 in |
| [LPR] Protruding Length | 212.0000 mm |
| [LPR] Protruding Length | 8.346 in |
| Coolant Pressure Bar | 100.0 |
| Coolant Pressure PSI | 1500.0 |
| Coolant Delivery | I |
| Weight Kilograms | 12.03 |
| Torque Catalog Newton Meters | 47-54 |
| Torque Catalog Foot Pounds | 35-40 |
