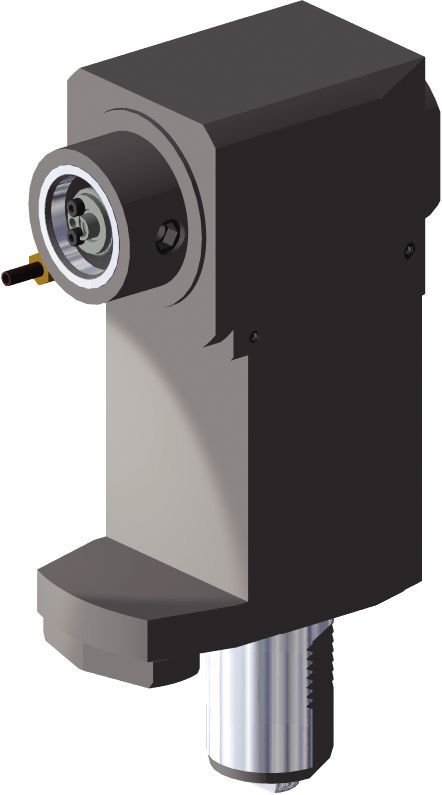

Mazak™ • Приводной инструмент, радиальное крепление • KM™ • MMC 019
Mazak™ • Приводной инструмент, радиальное крепление • KM™ • MMC 019
Mazak™ • Приводной инструмент, радиальное крепление • KM™ • MMC 019
Mazak™ • Приводной инструмент, радиальное крепление • KM™ • MMC 019
Select the files you wish to request
Downloads SDS
Send to {{cadTool}}
Request {{cadTool}} format
{{cadTool}} format is not available

Приводной инструмент, радиальное крепление • KM™ • TACU019KM50DR60945550, TACU019KM50DR60945551

Mazak™ • Приводной инструмент, радиальное крепление • KM™ • MMC 019

Метрическая система
Дюймовая система
SAP Material Number 6391678
ISO Catalog Number TACU019KM50DR60945551
ANSI Catalog Number TACU019KM50DR60945551
[CSWS] System Size Workpiece Side KM50
Machine Mount Code 019
[B2] Overall Width 161.5 mm
[B2] Overall Width 6.358 in
[D] Adapter / Shank / Bore Diameter 50 mm
[D] Adapter / Shank / Bore Diameter 1.969 in
[F] F Dimension 96.5 mm
[F] F Dimension 3.799 in
[H2] Overall Height 92 mm
[H2] Overall Height 3.62 in
[L] Overall Length 307 mm
[L] Overall Length 12.087 in
[L1] Gage Length 175 mm
[L1] Gage Length 6.89 in
[LPR] Protruding Length 222 mm
[LPR] Protruding Length 8.74 in
Torque Machine Spindle Nm 100
Coolant Pressure Bar 70
Coolant Pressure PSI 1000
Coolant Delivery I/E
[CS1] Coolant Supply Exit Size G 1/8
Max RPM 4000
Weight Kilograms 15.58
Torque Catalog Newton Meters 27-34
Torque Catalog Foot Pounds 20-25
Посмотреть все варианты продукции

Использование и область применения

  • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622

Характеристики и преимущества

Machine Series:

  • MP430 -12D

  • MP630 -12D

  • MP6300 -12D

  • MP6300Y -12D

  • MP650 -10D

Со стороны станка

загрузка...

Со стороны заготовки

загрузка...

Комплектующие for Приводной инструмент, радиальное крепление • KM™ • TACU019KM50DR60945550, TACU019KM50DR60945551

Spare Part
    Комплект запчастей (винт М5, прижим стал Комплект запчастей (винт М5, прижим стал
    Комплект запчастей (винт М5, прижим стал
    Spare Part
      Ключ Ключ
      Ключ
