| SAP Material Number | 6135207 |
| ISO Catalog Number | TRF38000H7SF |
| ANSI Catalog Number | TRF38000H7SF |
| Grade | WU05PR |

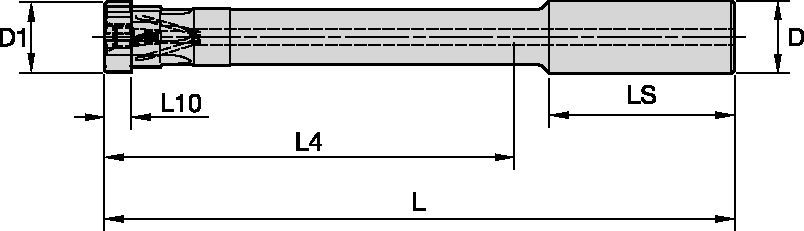

| [D1] Reamer Diameter Minimum | 38.0000 mm |
| [D1] Reamer Diameter Minimum | 1.496 in |
| [D] Adapter / Shank / Bore Diameter | 32.0 mm |
| [D] Adapter / Shank / Bore Diameter | 1.259 in |
| [L] Overall Length | 272.4000 mm |
| [L] Overall Length | 10.724 in |
| [L4] Maximum Reaming Depth | 205.4000 mm |
| [L4] Maximum Reaming Depth | 8.087 in |
| [L10] Cutting Edge Length | 7.5000 mm |
| [L10] Cutting Edge Length | .2953 in |
| [LS] Shank Length | 61.0 mm |
| [LS] Shank Length | 2.402 in |
| [Z] Number of Flutes | 8 |
Reaming: Blind & Cross
Reaming: Blind Hole
Shank - Cylindrical Plain
Through Coolant: Axial: Reaming
Reaming - Through CoolantISO Katalog Numarası
