End Mill Adapters
End Mill Adapters
End Mill Adapters
End Mill Adapters

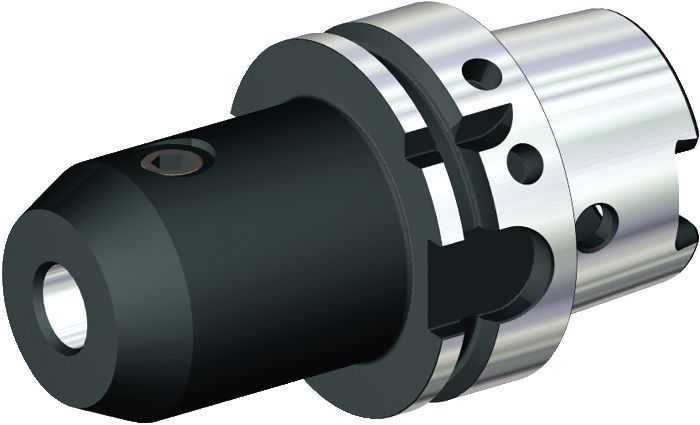

EM MM-HSK Form A • End Mill Adapter

End Mill Adapters

Uses and application

  • Shank - Cylindrical WeldonShank - Cylindrical Weldon
  • Shank: HSK DIN 69893 Form AShank: HSK DIN 69893 Form A
  • Balanced-by-Design Balanced-by-Design
  • Shank - Cylindrical Weldon DIN 1835/BShank - Cylindrical Weldon DIN 1835/B
  • Drilling - Through CoolantDrilling - Through Coolant
End Mill Adapters
Filters and Columns
Select Filters
Filters
Filters
Filters
View filters in
Metric
Inch
Front-End
Gage Length
Gage Length
  • 2.559 in (3)
  • 3.15 in (5)
  • 4.331 in (2)
Gage Length
Gage Length
  • 80 mm (5)
  • 65 mm (3)
  • 110 mm (2)
Front End Size
Front End Size
  • 0.01 in (1)
  • 0.014 in (1)
  • 0.016 in (1)
  • 0.019 in (1)
  • 0.022 in (1)
  • 0.025 in (1)
  • 0.028 in (1)
  • 0.031 in (1)
  • 0.038 in (1)
  • 0.049 in (1)
Front End Size Min to Front End Size Max
Front End Size
Front End Size
  • 6.0 mm (1)
  • 8.0 mm (1)
  • 10.0 mm (1)
  • 12.0 mm (1)
  • 14.0 mm (1)
  • 16.0 mm (1)
  • 18.0 mm (1)
  • 20.0 mm (1)
  • 25.0 mm (1)
  • 32.0 mm (1)
Front End Size Min to Front End Size Max
No filters matching ""
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Displaying 1- 10 of 10 results
Select Columns
Select Filters
Metric
Inch
Show
Metric
Inch

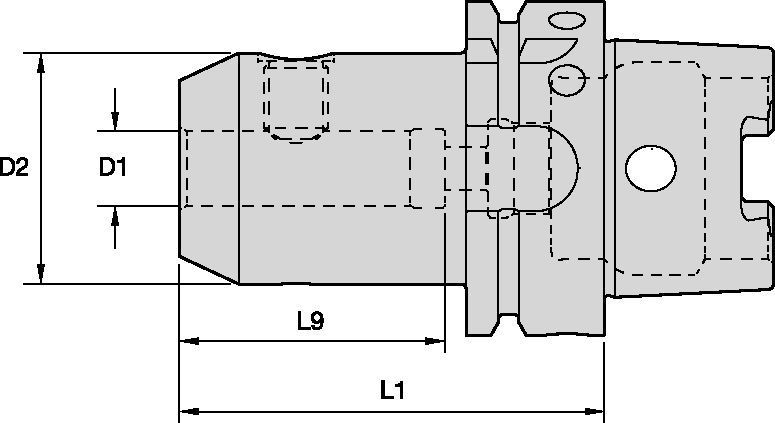

SAP Material Number ISO Catalog Number ANSI Catalog Number [D1] Adapter / Shank / Bore Diameter [D1] Adapter / Shank / Bore Diameter [D2] Body Diameter 1 Workpiece Side [D2] Body Diameter 1 Workpiece Side [L1] Gage Length [L1] Gage Length [L9] Clamping Length [L9] Clamping Hole Length Clamp Screw ID Drive Size Torque Catalog Newton Meters Weight Kilograms
1125914 HSK63AEM06065M HSK63AEM06065M 6.0000 .2363 24.5000 .9646 65.0000 2.559 43.2000 1.700 3 mm 7 0.76
    List price:
    $456.29 /each
    Your price:
    1125924 HSK63AEM08065M HSK63AEM08065M 8.0000 .3151 27.5000 1.082 65.0000 2.559 40.0000 1.570 4 mm 15 0.79
      List price:
      $456.29 /each
      Your price:
      1125931 HSK63AEM10065M HSK63AEM10065M 10.0000 .3938 34.5000 1.358 65.0000 2.559 41.0000 1.614 5 mm 25 0.88
        List price:
        $456.29 /each
        Your price:
        1125940 HSK63AEM12080M HSK63AEM12080M 12.0000 .4726 41.5000 1.633 80.0000 3.149 50.0000 1.970 6 mm 35 1.13
          List price:
          $456.29 /each
          Your price:
          1125951 HSK63AEM14080M HSK63AEM14080M 14.0000 .5513 43.5000 1.712 80.0000 3.149 50.0000 1.970 6 mm 35 1.17
            List price:
            $456.29 /each
            Your price:
            1125958 HSK63AEM16080M HSK63AEM16080M 16.0000 .6300 47.5000 1.870 80.0000 3.149 53.0000 2.090 6 mm 50 1.26
              List price:
              $456.29 /each
              Your price:
              1125987 HSK63AEM18080M HSK63AEM18080M 18.0000 .7090 49.5000 1.949 80.0000 3.149 53.0000 2.090 6 mm 50 1.30
                List price:
                $456.29 /each
                Your price:
                1125997 HSK63AEM20080M HSK63AEM20080M 20.0000 .7880 51.5000 2.027 80.0000 3.149 55.0000 2.170 8 mm 95 1.33
                  List price:
                  $456.29 /each
                  Your price:
                  1126005 HSK63AEM25110M HSK63AEM25110M 25.0000 .9840 64.5000 2.539 110.0000 4.331 60.0000 2.362 10 mm 135 2.31
                    List price:
                    $456.29 /each
                    Your price:
                    1126012 HSK63AEM32110M HSK63AEM32110M 32.0000 1.260 71.5000 2.815 110.0000 4.330 65.0000 2.560 10 mm 160 2.52
                      List price:
                      $456.29 /each
                      Your price:
