0°/90° Shoulder Mills • VSM890™-12

Weldon® End Mills • Inch

Features and benefits

  • True 0° wall and stepping down capability.

  • Optimized chip gash design for proper chip evacuation.

  • User-friendly pocket numbering system.

  • Cutter bodies with internal coolant supply.

  • Less bur creation on the workpiece.

Uses and application

  • 100018357100018357
  • Slotting: Square EndSlotting: Square End
  • Side Milling/Shoulder Milling: Square EndSide Milling/Shoulder Milling: Square End
  • Shank - Cylindrical  WeldonShank - Cylindrical Weldon
  • Milling - Through CoolantMilling - Through Coolant
Displaying 1-2 of 2 results
Select Columns
ColumnsX
Change the visible columns with any of the parameters listed below. A maximum of 7 columns can be displayed.
Select Filters
Metric
Inch
Show
Metric
Inch

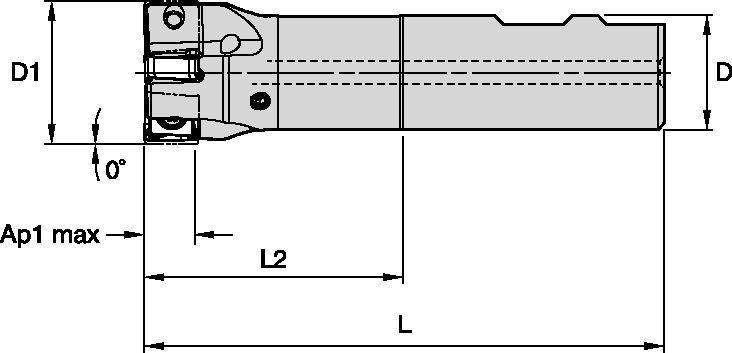

SAP Material Number ISO Catalog Number ANSI Catalog Number First Choice [D1] Effective Cutting Diameter [D1] Effective Cutting Diameter [D] Adapter / Shank / Bore Diameter [D] Adapter / Shank / Bore Diameter [L] Overall Length [L] Overall Length [L2] Head Length [L2] Head Length [AP1MAX] 1st Maximum Cutting Depth [AP1MAX] 1st Maximum Cutting Depth Number of Inserts Max RPM Coolant Supply Weight Pounds
6596129 VSM890D125Z03W100SN12 VSM890D125Z03W100SN12   31.7500 1.250 25.4 1.0 115.0600 4.530 57.1500 2.250 9.8000 .3872 3 33400 Y 0.89
6596130 VSM890D150Z04W100SN12 VSM890D150Z04W100SN12   38.1000 1.500 25.4 1.0 115.0600 4.530 57.1500 2.250 9.8000 .3872 4 29100 Y 1.18
