    Driven Tool Axial • ER™ • TACU035ER25DA61301859

    Doosan™ • Driven Tool Axial • ER™ • MMC 035

    Material Number6588989

    ISO Catalog IDTACU035ER25DA61301859ANSI Catalog IDTACU035ER25DA61301859

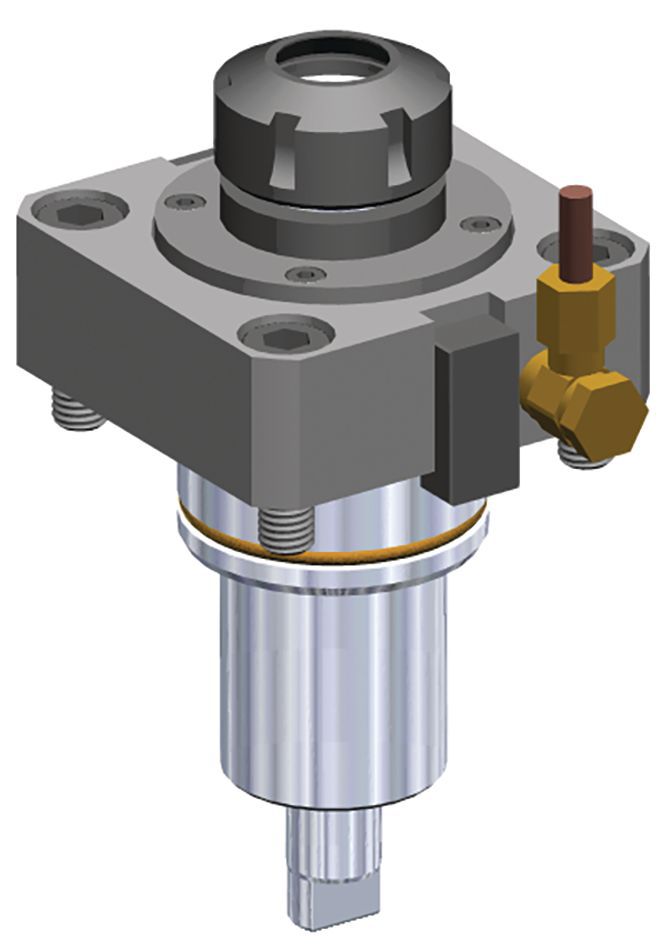

    Turret Adapted Clamping Units Driven Tool Axial • ER™
    Turret Adapted Clamping Units Driven Tool Axial • ER™
    Turret Adapted Clamping Units Driven Tool Axial • ER™
    Open expanded view
    Turret Adapted Clamping Units Driven Tool Axial • ER™
    Turret Adapted Clamping Units Driven Tool Axial • ER™
    Generic representation
    List Price
    $2,674.19/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
      {{cadTool}} format is not available

      Sending to {{cadTool}} in progress...

      Downloaded file will be available after import in the {{cadTool}} tool library.

      Drawings for 6588989
      Metric
      Inch
      Material Number6588989
      ISO Catalog IDTACU035ER25DA61301859
      ANSI Catalog IDTACU035ER25DA61301859
      [CST] Catalog Collet SeriesER25
      Machine Mount Code035
      [B2] Overall Width 85 mm
      [B2] Overall Width 3.3465 in
      [D] Adapter / Shank / Bore Diameter55 mm
      [D] Adapter / Shank / Bore Diameter2.1654 in
      [D11] Lock Nut Diameter42 mm
      [D11] Lock Nut Diameter1.6535 in
      Lock Nut Diameter [DLN_2]63 mm
      [DLN_2] Lock Nut Diameter 22.4803 in
      [H2] Overall Height 85 mm
      [H2] Overall Height 3.3465 in
      [L] Overall Length 166 mm
      [L] Overall Length 6.5354 in
      [L1] Gage Length60.5 mm
      [L1] Gage Length2.3819 in
      Torque Machine Spindle Nm25
      Coolant Pressure Bar25
      Coolant Pressure PSI360
      Coolant DeliveryI/E
      [CS1] Coolant Supply Exit SizeG 1/8
      Max RPM6000
      Weight Kilograms2.96
      Torque Newton Meters105
      Torque Foot Pounds77
      See all Product Variants

      Features and benefits

      Machine Series:
      • Lynx 300M
      • Puma 1500, 2000, 2500 M/Y (12 Station, BMT55)
      • Puma 1500-2500 MS/SY (12 Station, BMT55)
      • Puma 2100 M/MS/Y/SY (24 Station, BMT55)
      • Puma 2100 M/Y (12 Station, BMT55)
      • Puma 230, 240, 280 M/MS/LM
      • Puma MX1600, 2100 ST (BMT55)
      • Puma TL2000, 2500 M
      • Puma TT1500,1800 MS/SY

      Create Solution to calculate Feeds and Speeds

      After creating a solution just choose the Feeds & Speeds icon and our system will provide recommendations. You can customize the information by adding your machine and specifications or make adjustments using the sliders.

      I have read and accepted the Terms & Conditions of use

      CAD Drawings Models

      Can’t find the file type you’re looking for?

      Product data

      SDS

      Safety Data Sheets

      Product Name
      Material Number
      ISO Catalog ID
      ANSI Catalog ID

      ER Tension-Only Solid Tap Collets
      ER Tension-Only Solid Tap Collets
      1026373
      25ERTCT10
      25ERTCT10
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Tension-Only Solid Tap Collets
      ER Tension-Only Solid Tap Collets
      1026394
      25ERTCT031
      25ERTCT031
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Standard Tap Collets • Inch/Metric ANSI
      ER Standard Tap Collets • Inch/Metric ANSI
      1026432
      25ERTC8
      25ERTC8
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Standard Tap Collets • Inch/Metric ANSI
      ER Standard Tap Collets • Inch/Metric ANSI
      1026433
      25ERTC10
      25ERTC10
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Standard Tap Collets • Inch/Metric ANSI
      ER Standard Tap Collets • Inch/Metric ANSI
      1026444
      25ERTC12
      25ERTC12
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Standard Tap Collets • Inch/Metric ANSI
      ER Standard Tap Collets • Inch/Metric ANSI
      1026445
      25ERTC025
      25ERTC025
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Standard Tap Collets • Inch/Metric ANSI
      ER Standard Tap Collets • Inch/Metric ANSI
      1026446
      25ERTC031
      25ERTC031
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Standard Tap Collets • Inch/Metric ANSI
      ER Standard Tap Collets • Inch/Metric ANSI
      1026447
      25ERTC043
      25ERTC043
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Standard Tap Collets • Inch/Metric ANSI
      ER Standard Tap Collets • Inch/Metric ANSI
      1026448
      25ERTC050
      25ERTC050
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER Standard Tap Collets • Inch/Metric ANSI
      ER Standard Tap Collets • Inch/Metric ANSI
      1026449
      25ERTC037
      25ERTC037
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery

      Product Name
      Material Number
      ISO Catalog ID
      ANSI Catalog ID

      SHCS (M10-1.5p x 30 - 12.9)
      SHCS (M10-1.5p x 30 - 12.9)
      1021327
      MS1242
      MS1242
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      WRENCH
      WRENCH
      1136113
      ER25WM
      ER25WM
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
      ER25 Solid Lock Nut
      ER25 Solid Lock Nut
      6459253
      LNSRER25M
      LNSRER25M
      List Price
      /each
      Discount
      Your Price
      /each
      Sold in pkg. of 0Adjusted to meet the minimum package size.
      Minimum qty: 0Adjusted to meet the minimum quantity requirement.
      In StockThis item is no longer availableLonger Delivery
