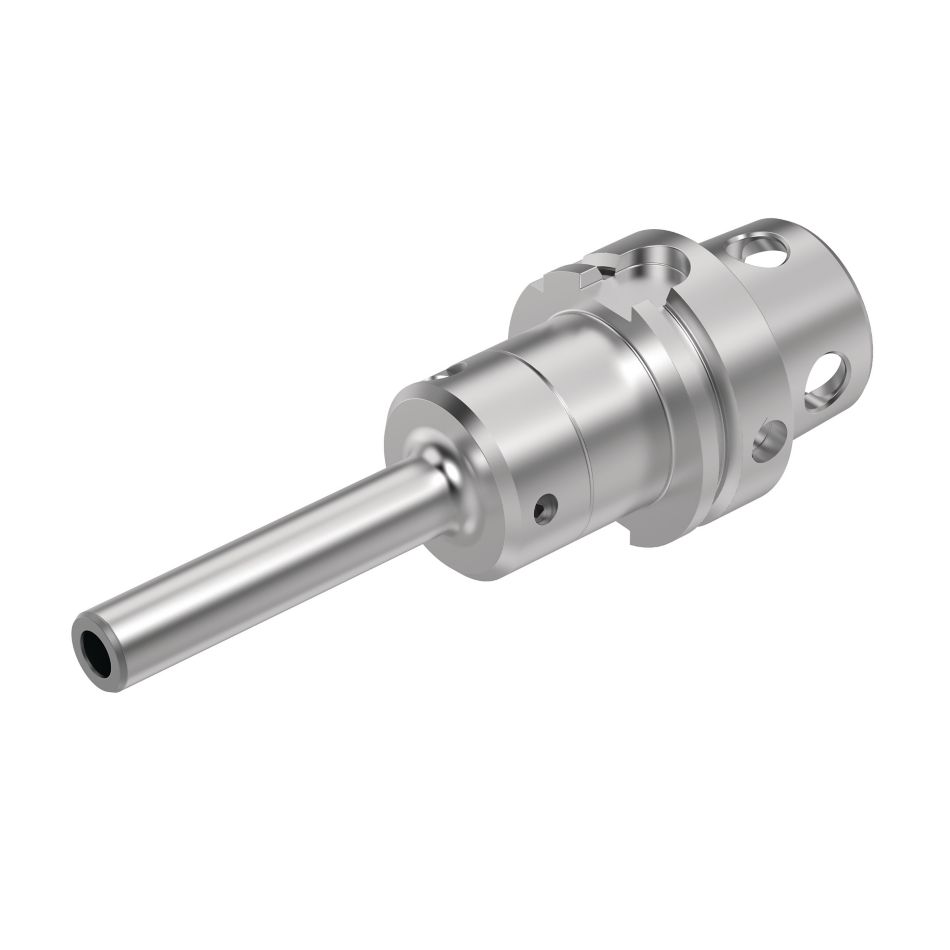

Hydraulic Chuck Slim Line
Hydraulic Chuck Slim Line
Hydraulic Chuck Slim Line
Hydraulic Chuck Slim Line

KM4X63 Shank Tools

Hydraulic Chuck Slim Line

Metric
Inch
SAP Material Number 5549205
ISO Catalog Number KM4X63HCSL20170M
ANSI Catalog Number KM4X63HCSL20170M
[D1] Adapter / Shank / Bore Diameter 20.0000
[D1] Adapter / Shank / Bore Diameter .7880
[D2] Body Diameter 1 Workpiece Side 27.5000
[D2] Body Diameter 1 Workpiece Side 1.083
[L1] Gage Length 170.0000
[L1] Gage Length 6.693
[L2] Usable Length 95.0000
[L2] Usable Length 3.740
[L9] Clamping Length 41.0000
[L9] Clamping Hole Length 1.614
[V] Adjustment Range 10.0000
[V] Adjustment Range .3940
Actuation Screw ID Drive Size 5 mm
Stop Screw ID Drive Size 2.5 mm
Weight Kilograms 1.74
See all Product Variants

Spare Parts for HCSL Slim KM4X Metric • KM4X63

SCREW DRIVER SW5
SCREW DRIVER SW5
WRENCH DIN 911 SW 2.5
WRENCH DIN 911 SW 2.5
SET SCREW  571.061
SET SCREW 571.061
