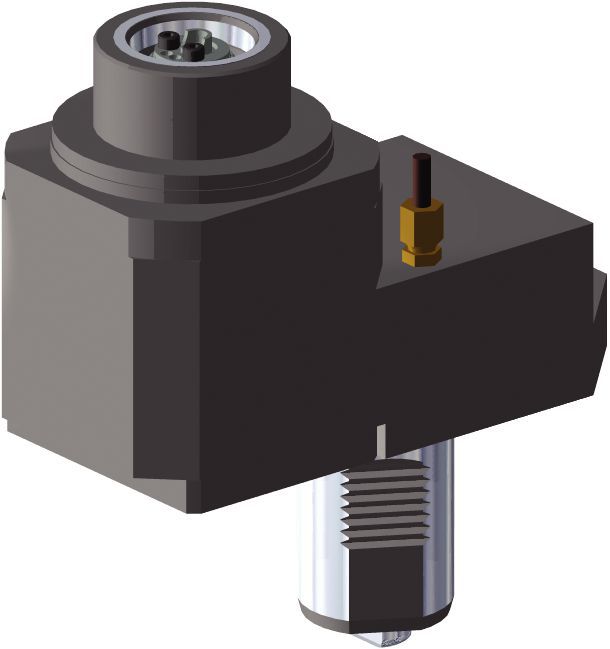

Mazak™ • Driven Tool Axial • KM™ • MMC 018
Mazak™ • Driven Tool Axial • KM™ • MMC 018
Mazak™ • Driven Tool Axial • KM™ • MMC 018
Mazak™ • Driven Tool Axial • KM™ • MMC 018

Turret Adapted Clamping Units

Mazak™ • Driven Tool Axial • KM™ • MMC 018

Metric
Inch
SAP Material Number 6391693
ISO Catalog Number TACU018KM50DA60908171
ANSI Catalog Number TACU018KM50DA60908171
[CSWS] System Size Workpiece Side KM50
Machine Mount Code 018
[B1] Front Clearance 126.0000
[B1] Front Clearance 4.961
[B2] Overall Width 206.0000
[B2] Overall Width 8.110
[D] Adapter / Shank / Bore Diameter 50.0
[D] Adapter / Shank / Bore Diameter 1.969
[F] F Dimension 75.0000
[F] F Dimension 2.953
[H2] Overall Height 96.0000
[H2] Overall Height 3.780
[L] Overall Length 225.0000
[L] Overall Length 8.858
[L1] Gage Length 139.5000
[L1] Gage Length 5.492
Torque Machine Spindle Nm 100.000
Coolant Pressure Bar 70.0
Coolant Pressure PSI 1000.0
Coolant Delivery I/E
[CS1] Coolant Supply Exit Size G 1/8
Max RPM 6000
Weight Kilograms 12.95
Torque Catalog Newton Meters 27-34
Torque Catalog Foot Pounds 20-25
See all Product Variants

Features and benefits

Machine Series:
  • Hyper Quadrex 450 M

  • Megaturn Nexus 900 M

  • Quick Turn Nexus 300-450 M, MY

  • Slant Turn Nexus 500, 550 M

Spare Parts for Driven Tool Axial • KM™ • TACU018KM50DA60908166, TACU018KM50DA60908171

TORQUE WRENCH
TORQUE WRENCH
CLAMPING UNIT SPARE PARTS PKG
CLAMPING UNIT SPARE PARTS PKG
