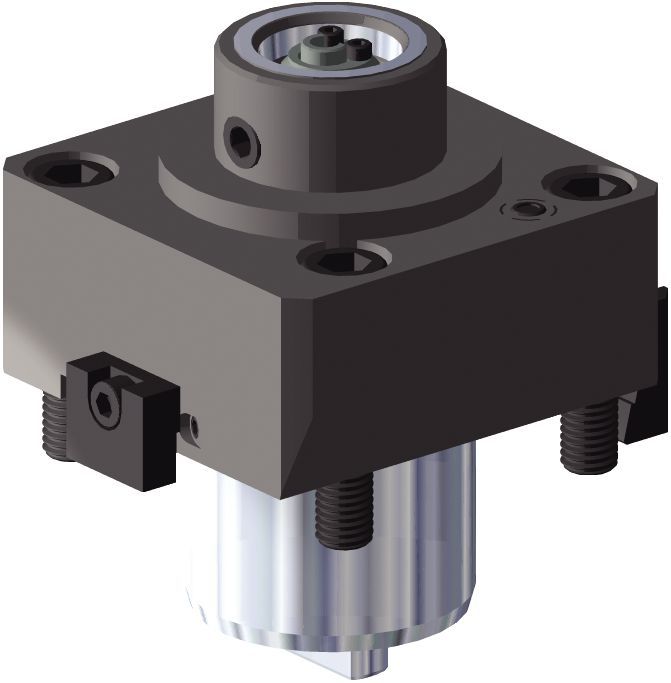

Through Coolant: Axial: Drilling
Shank - KM-TS ISO 26622
Shank - KM-TS ISO 26622Downloaded file will be available after import in the {{cadTool}} tool library.
| Material Number | 6411158 |
| ISO Catalog ID | TACU009KM40DA60907348 |
| ANSI Catalog ID | TACU009KM40DA60907348 |
| [CSWS] System Size Workpiece Side | KM40 |
| Machine Mount Code | 009 |
| [B2] Overall Width | 100 mm |
| [B2] Overall Width | 3.937 in |
| [D] Adapter / Shank / Bore Diameter | 60 mm |
| [D] Adapter / Shank / Bore Diameter | 2.362 in |
| [H2] Overall Height | 100 mm |
| [H2] Overall Height | 3.94 in |
| [L] Overall Length | 137 mm |
| [L] Overall Length | 5.394 in |
| [L1] Gage Length | 75 mm |
| [L1] Gage Length | 2.953 in |
| Torque Machine Spindle Nm | 50 |
| Coolant Pressure Bar | 70 |
| Coolant Pressure PSI | 1000 |
| Coolant Delivery | E |
| [CS1] Coolant Supply Exit Size | M12X1 |
| Max RPM | 6000 |
| Weight Kilograms | 5.22 |
| Torque Catalog Newton Meters | 12-16 |
| Torque Catalog Foot Pounds | 9-12 |
