Okuma™ • Driven Tool Radial • KM™ • MMC 009
Okuma™ • Driven Tool Radial • KM™ • MMC 009
Okuma™ • Driven Tool Radial • KM™ • MMC 009
Okuma™ • Driven Tool Radial • KM™ • MMC 009
Okuma™ • Driven Tool Radial • KM™ • MMC 009
Okuma™ • Driven Tool Radial • KM™ • MMC 009
Select the files you wish to request
Downloads SDS
Request {{cadTool}} format
{{cadTool}} format is not available

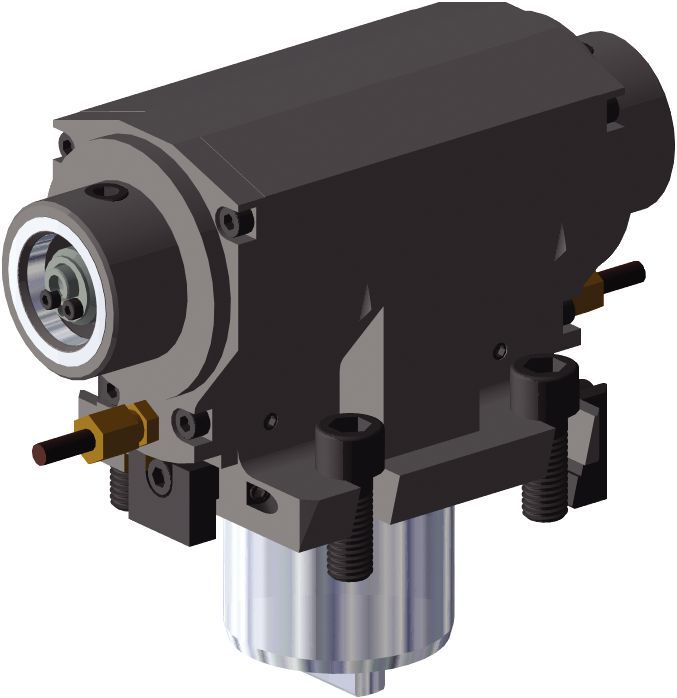

Driven Tool Radial • KM™ • TACU009KM40DR60907355

Okuma™ • Driven Tool Radial • KM™ • MMC 009

Metric
Inch
SAP Material Number 6411224
ISO Catalog Number TACU009KM40DR60907355
ANSI Catalog Number TACU009KM40DR60907355
MAR_ASTERISK *
[CSWS] System Size Workpiece Side KM40
Machine Mount Code 009
[B2] Overall Width 188 mm
[B2] Overall Width 7.402 in
[D] Adapter / Shank / Bore Diameter 60 mm
[D] Adapter / Shank / Bore Diameter 2.362 in
[F] F Dimension 94 mm
[F] F Dimension 3.701 in
[H2] Overall Height 98 mm
[H2] Overall Height 3.86 in
[L] Overall Length 169 mm
[L] Overall Length 6.654 in
[L1] Gage Length 70 mm
[L1] Gage Length 2.756 in
[LPR] Protruding Length 107 mm
[LPR] Protruding Length 4.213 in
Torque Machine Spindle Nm 50
Coolant Pressure Bar 100
Coolant Pressure PSI 1500
Coolant Delivery E
[CS1] Coolant Supply Exit Size G 1/8
Max RPM 6000
Weight Kilograms 9.26
Torque Catalog Newton Meters 12-16
Torque Catalog Foot Pounds 9-12
See all Product Variants

Uses and application

  • Through Coolant: Axial: DrillingThrough Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622Shank - KM-TS ISO 26622

Features and benefits

Machine Series:
  • Genos L300 MW/MYW

  • LB/LU 2000-3000 EX M/MY/MW/MYW

  • MULTUS U3000, 4000 2S

Machine Side

loading...

Workpiece Side

loading...

Spare Parts for Driven Tool Radial • KM™ • TACU009KM40DR60907355

Spare Part
    CLAMPING UNIT SPARE PARTS PKG CLAMPING UNIT SPARE PARTS PKG
    CLAMPING UNIT SPARE PARTS PKG
    Spare Part
      TORQUE WRENCH TORQUE WRENCH
      TORQUE WRENCH
      Spare Part
        SHCS M12 1.75p x 30 SHCS M12 1.75p x 30
        SHCS M12 1.75p x 30
