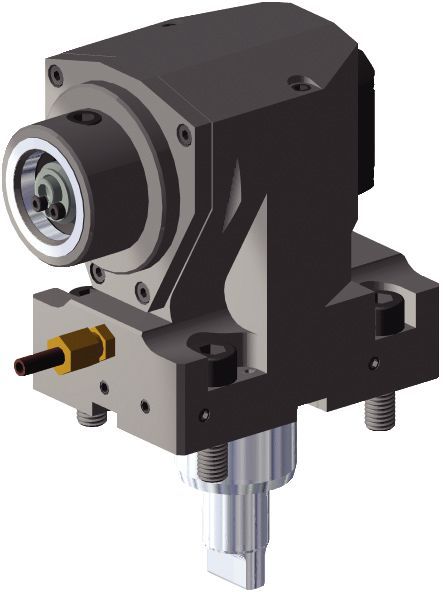

Turret Adapted Clamping Units

DMG Mori • Driven Tool Radial • KM™ • MMC 001

Features and benefits
Machine Series:
  • DuraTurn 2050, 2550 MC

  • NL/NLX 1500-2500 (20 Station Turret)

  • NT 3100, 3150, 3200

  • NT/NTX 1000, 2000

  • NZ/NZX 1500-2000 (16 Station Turret)
Product specifications
Product # 6201239
ISO Catalog Number TACU001KM40DR60648439
ANSI Catalog Number TACU001KM40DR60648439
[CSWS]System SizeWorkpieceSide KM40
Machine Mount Code 001
[B2]Overall Width Metric 135
[D]Adapter/Shank/Bore Dia mm 40,0
[F] F Dimension Metric 80
[H2] Overall Height Metric 78
[L] Overall Length Metric 190
[L1]Gage Length 1 Metric 85
[LPR]Protruding Length Metric 121
Torque Machine Spindle Nm 32
Coolant Pressure Bar 100
Coolant Pressure PSI 1500
[CS1]Coolant Supply Exit Size G 1/8
Max RPM 6000
Weight Kilograms 6.69
Torque Catalog Newton Meters 12-16
Torque Catalog Foot Pounds 9-12
Need help? Contact our customer service team.
Contact us

Driven Tool Radial • KM™

Filter By:
Product # ISO Catalog Number ANSI Catalog Number Grade [CSWS]System SizeWorkpieceSide Machine Mount Code [B2]Overall Width Metric [D]Adapter/Shank/Bore Dia mm [F] F Dimension Metric [H2] Overall Height Metric [L] Overall Length Metric [L1]Gage Length 1 Metric [LPR]Protruding Length Metric Torque Machine Spindle Nm Coolant Pressure Bar Coolant Pressure PSI [CS1]Coolant Supply Exit Size Max RPM Weight Kilograms Torque Catalog Newton Meters Torque Catalog Foot Pounds
6201263 TACU001KM32DR60648443 TACU001KM32DR60648443 KM32 001 127,5 40,0 72,50 78 190 85 121 32 100 1500 G 1/8 12000 6.79 8-11 6-8
6201264 TACU001KM32DR60648444 TACU001KM32DR60648444 KM32 001 132 40,0 72,50 78 190 85 121 32 70 1000 G 1/8 12000 6.79 8-11 6-8
6201239 TACU001KM40DR60648439 TACU001KM40DR60648439 KM40 001 135 40,0 80 78 190 85 121 32 100 1500 G 1/8 6000 6.69 12-16 9-12
6201240 TACU001KM40DR60648440 TACU001KM40DR60648440 KM40 001 139,5 40,0 80 78 190 85 121 32 70 1000 G 1/8 6000 6.88 12-16 9-12

Product Usage

Uses and application

  • Through Coolant: Axial: Drilling
  • Shank - KM-TS ISO 26622
  • Shank - KM-TS ISO 26622

Spare Parts for Driven Tool Radial • KM™ • TACU001KM32DR60648443, TACU001KM32DR60648444, TACU001KM40DR60648439, TACU001KM40DR60648440

CLAMPING UNIT SPARE PARTS PKG
CLAMPING UNIT SPARE PARTS PKG
TORQUE WRENCH
TORQUE WRENCH
