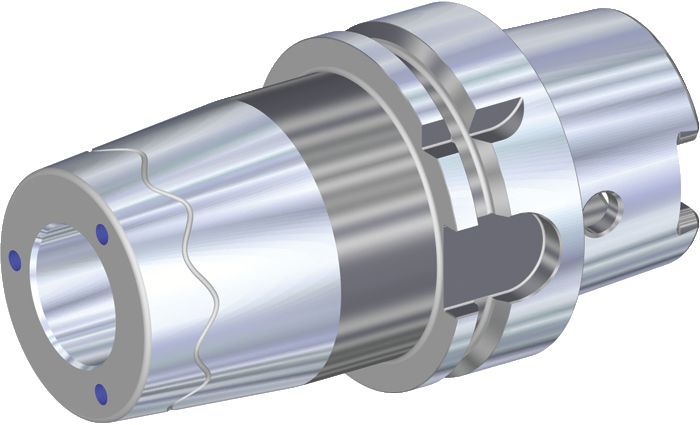

SAFE-LOCK™ Shrink Fit Toolholders
SAFE-LOCK™ Shrink Fit Toolholders
SAFE-LOCK™ Shrink Fit Toolholders
SAFE-LOCK™ Shrink Fit Toolholders

HSK63A Shank Tools

SAFE-LOCK™ Shrink Fit Toolholders

Metric
Inch
SAP Material Number 5090219
ISO Catalog Number HSK63ASFTT14075M
ANSI Catalog Number HSK63ASFTT14075M
[D1] Adapter / Shank / Bore Diameter 14.0000
[D1] Adapter / Shank / Bore Diameter .5512
[D2] Body Diameter 1 Workpiece Side 29.5000
[D2] Body Diameter 1 Workpiece Side 1.161
[D21] Body Diameter 2 Workpiece Side 37.2100
[D21] Body Diameter 2 Workpiece Side 1.465
[L1] Gage Length 75.0000
[L1] Gage Length 2.952
[L2] Usable Length 49.0000
[L2] Usable Length 1.929
[L9] Clamping Length 48.0000
[L9] Clamping Hole Length 1.889
Weight Kilograms 0.91
See all Product Variants

Features and benefits

  • SAFE-LOCK™, innovative and unique non-slip system.

  • Suitable for carbide and HSS cutting tools.

  • Need ≥ 10 kW shrink unit.
