TOP DRILL M1™ • TopSTEP Chamfer and Counterboring Inserts
TOP DRILL M1™ • TopSTEP Chamfer and Counterboring Inserts
TOP DRILL M1™ • TopSTEP Chamfer and Counterboring Inserts
TOP DRILL M1™ • TopSTEP Chamfer and Counterboring Inserts

Modular Drills

TOP DRILL M1™ • TopSTEP Chamfer and Counterboring Inserts

Metric
Inch
SAP Material Number 5983706
ISO Catalog Number VXGX10030234
ANSI Catalog Number VXGX10030234
Grade WP20PH
[W1] Insert Width 6.3500
[W1] Insert Width .2500
[D1] Insert Hole Size 2.8500
[D1] Insert Hole Size .1120
[S] Insert Thickness 3.4800
[S] Insert Thickness .1370
See all Product Variants

Workpiece Material

P
M
K
N
S

Features and benefits

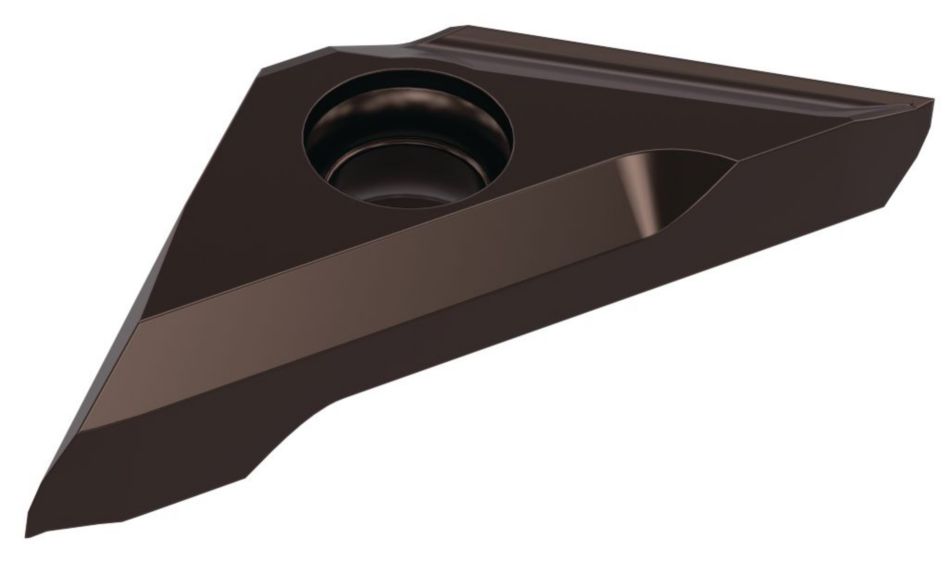

TopSTEP VG Chamfering Inserts

  • 45° chamfer angle with broad cutting edge.

  • Hassle-free usage.

  • Very stable and accurate positioning in pocket.

  • Two times indexable.

  • One universal insert size for a lot of applications.

Grades

  • WP20PH
    P
    S
    K
    M
    N
