High-Feed Mills • VXF™-07

Cylindrical End Mills • Inch

Metric
Inch
SAP Material Number 6712973
ISO Catalog Number VXF100Z04C100XP07L800
ANSI Catalog Number VXF100Z04C100XP07L800

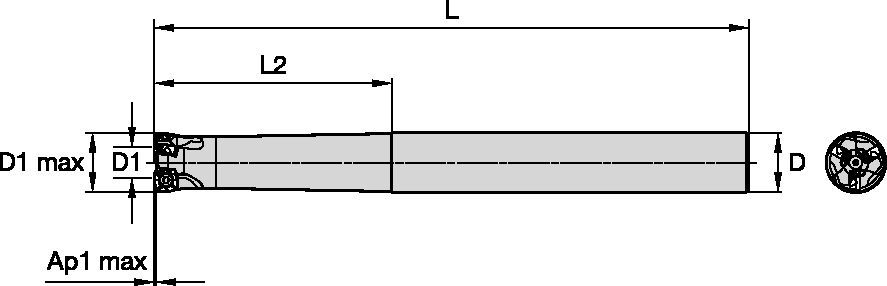

[D1MAX] Maximum Cutting Diameter 25.4000
[D1MAX] Maximum Cutting Diameter 1.000
[D1] Effective Cutting Diameter 16.0380
[D1] Effective Cutting Diameter .6314
[D] Adapter / Shank / Bore Diameter 25.4
[D] Adapter / Shank / Bore Diameter 1.0
[L] Overall Length 203.2000
[L] Overall Length 8.000
[L2] Head Length 88.9000
[L2] Head Length 3.500
[AP1MAX] 1st Maximum Cutting Depth 0.9000
[AP1MAX] 1st Maximum Cutting Depth .0354
Number of Inserts 4
Maximum Ramping Angle 2.200
Max RPM 49000
Coolant Supply Y
Weight Pounds 1.56
See all Product Variants

Uses and application

  • Counter BoringCounter Boring
  • Spiral CircularSpiral Circular
  • PocketingPocketing
  • 100018357100018357
  • Helical MillingHelical Milling
  • Plunge MillingPlunge Milling
  • Ramping: BlankRamping: Blank
  • Inclined Square End MillInclined Square End Mill
  • Shank - Cylindrical  PlainShank - Cylindrical Plain

Spare Parts for VXF™-07 • Cylindrical End Mills • Inch

SPARE PART ANTI-SEIZE LUBRICAN
SPARE PART ANTI-SEIZE LUBRICAN
TORX DRIVER
TORX DRIVER
INSERT SCR M3-0.5 X 7 T8
INSERT SCR M3-0.5 X 7 T8
