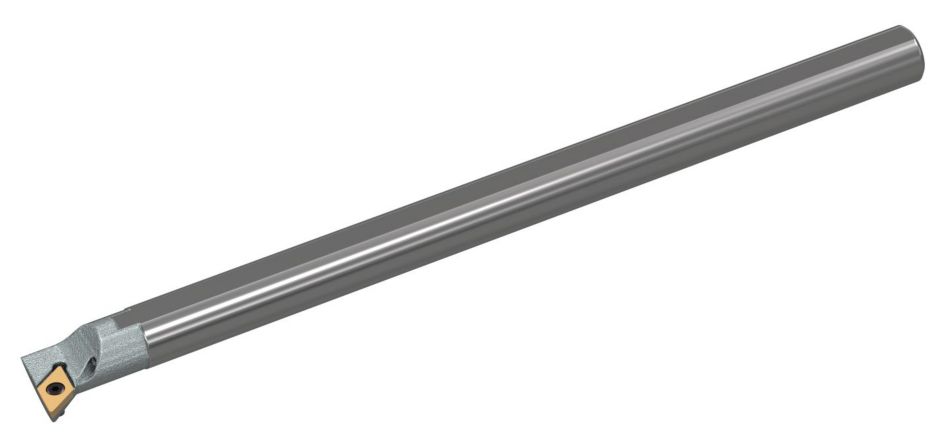

S-Style Screw Clamp Boring Bars for Positive Inserts

Steel Shank with Through Coolant

Product specifications

Product #	5078366
ISO Catalog Number	A16TSDUPR3
ANSI Catalog Number	A16TSDUPR3
Grade	WG
[D]Adapter/Shank/Bore Dia Inch	1.0
[DMIN]Min BoreDia_Ax GrvDia In	1.300
[F] F Dimension Inch	.7500
[L1] Tool Length Inch	12
[A]Coolant Hole Dia Inch	.2500
[CS] Coolant Supply Size	1/4-18 NPT
[GAMMAF] Radial Rake Angle	.000
Catalog Gage Insert 1	DP..32
Insert Screw ID Drive Size	T15

Need help? Contact our customer service team.

A-SDUP -3°

Filter By:

Product #	ISO Catalog Number	ANSI Catalog Number	Grade	[D]Adapter/Shank/Bore Dia Inch	[DMIN]Min BoreDia_Ax GrvDia In	[F] F Dimension Inch	[L1] Tool Length Inch	[A]Coolant Hole Dia Inch	[CS] Coolant Supply Size	[GAMMAF] Radial Rake Angle	Catalog Gage Insert 1	Insert Screw ID Drive Size
5078324	A06MSDUPR2	A06MSDUPR2	WG	.375	.6000	.3750	6	.1250		-3.000	DP..21	T7
5078326	A08RSDUPR2	A08RSDUPR2	WG	.5	.7300	.4370	8	.1560	1/16-27 NPT	.000	DP..21	T7
5078360	A12MSDUPR07	A12MSDUPR07	WG	.47	.6300	.3540	5.906	.1600	1/16-27 NPT	-2.000	DP..07	T7
5078366	A16TSDUPR3	A16TSDUPR3	WG	1.0	1.300	.7500	12	.2500	1/4-18 NPT	.000	DP..32	T15

Product Usage

Uses and application
Grades

Uses and application

I.D. Chamfering & Profiling
52368

Grades

WG

Spare Parts for A-SDUP -3°

TORX-WRENCH TX15

TORX-WRENCH TX15

INSERT SCR M3.5-0.6 X 8 T15

INSERT SCR M3.5-0.6 X 8 T15
