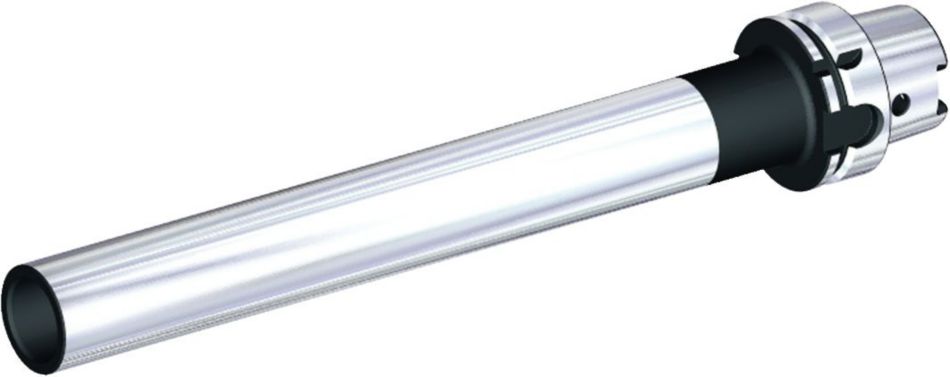

    GB-HSK Form A • Gage Bar

    Gage Bars • Bar Blanks

    Material Number1228288

    ISO Catalog IDHSK63AGB40346MANSI Catalog IDHSK63AGB40346M

    HSK Shank Tools Gage Bars • Bar Blanks
    HSK Shank Tools Gage Bars • Bar Blanks
    HSK Shank Tools Gage Bars • Bar Blanks
    Open expanded view
    HSK Shank Tools Gage Bars • Bar Blanks
    HSK Shank Tools Gage Bars • Bar Blanks
    Generic representation
    List Price
    $924.80/each
    Discount
    Your Price
    /each
    In StockThis item is no longer availableLonger Delivery
    Material Pricing Group
    Contact our sales team to discover all of your pricing options
    Sold in pkg. of 0Adjusted to meet the minimum package size.
    Minimum qty: 0Adjusted to meet the minimum quantity requirement.
    This item is no longer available
    • Shank - HSK DIN 69893 Form AShank - HSK DIN 69893 Form A
    {{cadTool}} format is not available

    Sending to {{cadTool}} in progress...

    Downloaded file will be available after import in the {{cadTool}} tool library.

    Drawings for 1228288
    Metric
    Inch
    Material Number1228288
    ISO Catalog IDHSK63AGB40346M
    ANSI Catalog IDHSK63AGB40346M
    [D2] Body Diameter 1 Workpiece Side 39.992 mm
    [D2] Body Diameter 1 Workpiece Side 1.5745 in
    [L1] Gage Length346 mm
    [L1] Gage Length13.622 in
    Gage Test Length [L13]300 mm
    Gage Test Length [L13]11.81 in
    Weight Kilograms2.38
    See all Product Variants

    Uses and application

    • Shank - HSK DIN 69893 Form AShank - HSK DIN 69893 Form A

    Features and benefits

    • For acceptance testing on machine tool spindles.
    • 0,003 (.0001") maximum TIR.
    • Precision ground.
